RESEARCH ARTICLE



Synthesis and photocatalytic activity of monolithic Fe₂O₃/TiO₂





Wei Chang^I'^{, *}; Maojin Zhang^I; Xiaosai Ren^I; Andrew Miller^II

^ISchool of Environmental and Chemical Engineering, Xian Polytechnic University, Xian 710048, China
^IIEmporia State University, Emporia, KS, 66801-5087, USA





---

ABSTRACT

The monolithic Fe₂O3/TiO₂ composites were synthesized via a one-pot sol-gel process with titanium tetrachloride as a Ti source and ferric chloride as a Fe source. The monolithic Fe₂O3/TiO₂ composites were characterized by scanning electron microscopy, powder XRD, N₂/adsorption-desorption, fluorescence and UV-vis diffuse reflectance spectroscopy. The photocatalytic activity of the Fe₂O3/TiO₂ composites were evaluated by degradation of bisphenol A. The results indicated that, with the doping of Fe, the surface area of the monolithic Fe₂O/TiO₂ increased, the forbidden band width decreased and the electron-hole recombination rate decreased. The monolithic Fe₂O3/TiO₂ composite with Fe/Ti molar ratio of 0.03 had the best photocatalytic activity for degradation of bisphenol A.

Keywords: Sol-gel process, Fe₂O₃/TiO₂, photocatalysis.

---





1. Introduction

In recent years, with the development of industry, the pollution of water has become a serious problem to the normal ecological environment. Typically, pharmaceuticals and personal care products (PPCPs), as a series of new reported contaminants, have had a persistent and unrecoverable impact on the environment even though their concentration in the environment is very low. Bisphenol A (BPA), one of the PPCPs, may potentially create adverse health effects. It is reported that BPA has been frequently detected in rivers and drinking water and is difficult to remove effectively with traditional methods.^1,2

Nano TiO₂ is an efficient photocatalyst and has attracted much attention with the increasing environmental problems because of its stable chemical properties, non-toxic character and no secondary pollution.³ However, TiO₂ has a wide band gap energy of about 3.2 eV for the anatase structure and 3.0 eV for rutile structures and thus only a small fraction of the solar spectrum (5 %) is absorbed.⁴ On the other hand, the recombination probability of photo-generated electrons and holes is higher, leading to a lower photocatalytic efficiency. To extend the photo-response region of TiO₂ from the UV to visible region and to overcome this electron-hole recombination, some different methods have been applied, such as doping with Nd, Cu, Fe and Ag,^5-9 noble metal deposition,^10-13 sensitization,¹⁴ composite formation,¹⁵ and the coupling of TiO₂ with other metal oxides.^16-20 Among them, ferric oxide is known to have a narrow band gap of 2.2 eV and can be used as a visible light photocatalyst in industrial applications due to its low cost, non-toxicity and high chemical stability.²¹ Fe₂O₃ modified TiO₂was investigated extensively for its potential application in degradation of organic pollutants. It has been shown that combination of Fe₂O₃ and different TiO₂ nanostructure can not only extend the spectra absorption range, but can also develop a defect structure for the separation of photo-generated electrons and holes. In addition, most of the reported materials have a nanostructure, which is difficult to separate after the photocatalytic reaction process. The film type photocatalysts increased the recovery efficiency but reduced the specific surface area, resulting in low photocatalytic activity.²²

Therefore, how to remove all kinds of contaminants effectively and in an environmentally-friendly manner is becoming a focused area of current research. In this study, the monolithic Fe₂O₃/TiO₂ was synthesized by the sol-gel process. The monolithic material has a macro and mesopore structure. Meanwhile, the Fe doping extends the range of the light response of the material. The photocatalytic activity of the monolithic Fe₂O₃/TiO₂ was evaluated by degradation of BPA in aqueous solution using a 500 W xenon lamp.



2. Experimental

2.1. Materials

Titanium tetrachloride (TiCl₄) was obtained from Tianjin Fuchen Chemical Reagents Co., Ltd. Poloxamer (F127) was purchased from BASF chemical company in Germany. Absolute ethyl alcohol (CH₃CH₂OH), furfuryl alcohol (FA,C₅H₆O₂), ferric trichloride (FeCl₃.6H₂O), and bisphenol A(BPA) were obtained from Sinopharm Chemical Reagents Co., Ltd. Millipore water (R>18MQ*cm^-1) was used in all experiments. All reagents were used as received.

2.2. Characterization

The morphology of all the samples was observed by scanning electron microscopy (SEM) performed on a QUATA FEG 450 field emission instrument operated at an accelerating voltage of 5.0 kV. The crystal structure of the samples were analyzed by XRD (Rigaku, Dmax-Rapid II) with Cu-Ka radiation (1 = 0.15418 nm, 40 kV, 40 mA). The scanning range was from 20 ° to 80 °. The surface areas of samples were determined from nitrogen adsorption-desorption isotherms at liquid nitrogen temperature using a 2390 Micromertics instrument. The photo-luminescence (PL) spectra of the samples were recorded by RF-5301PC (Japan) spectrofluorometer at the excitation wavelength of 350 nm. The scanning speed was 1200 nm min^-1, the PMT voltage 700 V and the width of the excitation slit and emission slit was 10.0 nm. UV-vis diffuse reflectance spectra were recorded at room temperature on a Lambda 950 instrument.

2.3. Preparation of Monolithic Te₂OjTiO₂and TiO₂

Firstly, 2.6 mL TiCl₄ was slowly added into 56 mL ethyl alcohol in ice water bath, and then, 1.8 g F127 was dissolved completely in the above solution. Secondly, 225 μL FeC₃ solution, and 2.27 mL FA were added to the mixture, stirring for 15 min. The molar ratio of Fe/Ti was 0.005, 0.01, 0.02, 0.03, respectively. The mixed solution was kept in an oven at 60 °C for 5 days, and then at 130 °C for 3 days. Finally, the sample was calcined at 450 °C for 2 h. The obtained samples with Fe/Ti molar ratio of 0.005, 0.01, 0.02,0.03 were marked as FT0.5, FT1, FT2, FT3, respectively. The prepared sample without iron was marked as FT0.²³

2.4. Photocatalytic Activity Test

Photocatalytic performance of the prepared samples were investigated by degrading BPA. The photocatalytic experiments were conducted in a photocatalytic reactor (BL-GHX-V). In the experiment, a 500 W xenon lamp (190-1100 nm) was employed as the light source. Prior to irradiation, 50 mL of BPA (2 X 10^-5 mol L^-1) aqueous solution containing 30 mg sample was magnetically stirred in the dark for 60 min to achieve adsorption/desorption equilibrium and a good dispersion. During the photoreaction, the samples were collected at regular intervals (1 h) and centrifuged to remove the sample. The supernatant solution before and after degradation was analyzed by a UV-visible spectrophotometer (UV-2450, Shimadzu) at 225 nm. The remaining BPA concentration (%) after various time intervals could be estimated with the following equation:

where C₀ is initial concentration of BPA insolution,while Cisthe concentration at t h, respectively. The test process was repeated three times.



3. Results and Discussion

3.1. SEM of the As-prepared Material

Figure 1a, b, c, d shows the images of the prepared samples. It can be observed that the samples presented a honeycomb cell structure but with irregular continuous macropores. The macropore structure permits the liquid to enter and the light to penetrate, which is beneficial for organic molecular adsorption and photocatalytic degradation. Furthermore the monolith is easy to recover when it is used for wastewater treatment. The chemical composition of the samples was further characterized by EDS. Figs. 1e, 1f, 1g and 1h show the EDS spectra of the FT0, FT1, FT2 and FT3 samples, respectively. It indicates that the FT0 sample was, apart from O, mainly composed of Ti, while Fe and Ti were found in the other prepared samples.

3.2. X-Ray Diffraction (XRD) Patterns

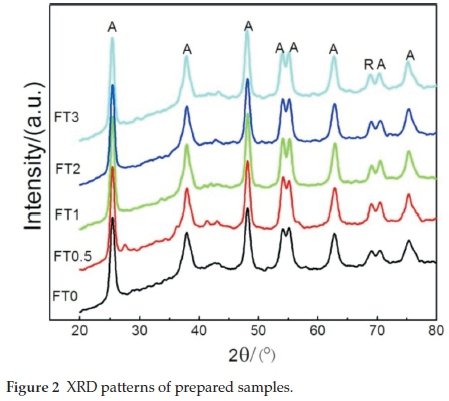

The XRD patterns of Fe₂O₃/TiO₂ photocatalysts are shown in Fig. 2. The diffraction peak of Fe₂O₃/TiO₂ photocatalysts at about 2Θ = 25.2 °, 37.8 °, 48.1 °, 54.1 °, 55.0 °, 62.7 °, 70.3 °, 75.1 ° could be perfectly indexed to the (101, (004, (200, (105), (211, (204), (215) crystal faces of anatase TiO₂, respectively. And diffraction peaks atabout2q = 68.8°could be perfectly indexed to the (301) crystal faces of rutile TiO₂. Meanwhile, with the increase of the Fe content, the position of the diffraction peak and intensity have changed little, and no new diffraction peaks appear. It indicates that the doping of Fe₂O₃ hardly affected the TiO₂ crystallinity. It can be inferred that, because the ionic radius of Fe³+ (0.64 A) is only slightly smaller than that of Ti⁴+ (0.68 A), the Fe³+ can enter the lattice of TiO₂ replace Ti⁴+.^4,24,25





3.3. Nitrogen Adsorption-Desorption

The nitrogen adsorption-desorption isotherms of Fe₂O₃/TiO₂ photocatalysts are shown in Fig. 3. As can be seen from Fig. 3, all the samples have a type IV hysteresis loop according to the IUPAC classification. With the doping of iron, the appearance of the hysteresis loop moved to lower pressure, indicating that the pore size of the samples decreased. The specific surface areas of the samples calculated by the BET model and the pore size distribution calculated by the BJH model are shown in Table 1, which suggests that the specific surface area of the samples increased after doping iron. The average pore diameter of the prepared samples was between 5~25 nm, showing that the samples have mesoporous structure. The results suggested that Fe doping would affect the porous structure of the monolithic TiO₂.







3.4. Photoluminescence Spectroscopy

The photoluminescence spectra of all samples excited at 350 nm are shown in Fig. 4. The photoluminescence spectroscopy of semiconductor caused by the electronic-hole recombination, and the smaller the carrier recombination rate was, the lower photoluminescence intensity.^26,27 As can be seen in Fig. 4, the intensity of PL decreased with the increasing Fe content, which implies the electron-hole recombination rate tends to be lower with the doping of Fe in the monoliths and hence have higher separation efficiency for electronic-hole pairs. When the recombination rate decreases, more photo-generated charge carriers can participate in the photochemical transformation, resulting in the enhancement of photocatalytic activity.²⁸ It can be inferred that the Fe incorporated into the TiO₂ can act as the electron-trapping agent to promote the electron-hole separation.





3.5. UV-vis Diffuse Reflectance Spectra

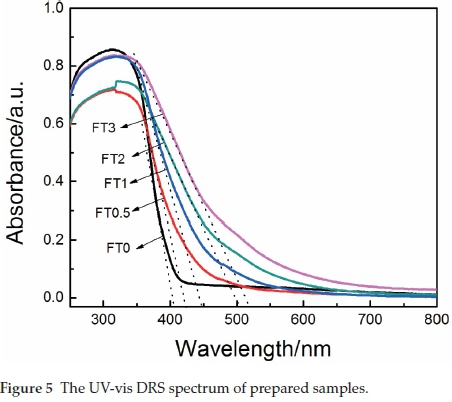

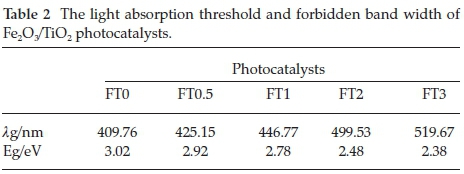

Figure 5 displays the DRS of monolithic TiO₂ and Fe₂O/TiO₂ samples. Compared with the absorption spectrum of monolithic TiO₂, there is an obvious absorption extending to more than 400 nm for the Fe₂O/TiO₂ sample, which is ascribed to the contribution from Fe₂O₃. According to the extension method,²⁹ the light absorption threshold and forbidden band gap of samples were evaluated and the results are shown in Table 2. The band gap of monolithic TiO₂ was calculated to be 3.02 eV The forbidden band gap decreased after doping with Fe, and when Fe₂O/TiO₂ composite with Fe/Ti molar ratio of 0.03, the forbidden band gap decreased to 2.38 eV. This is because the electronic structure of TiO₂ were interfered after doping of Fe³+. Meanwhile, the d-d orbital transition (²T_2g → ²A_2g,²T_1g) of Fe³+ or the charge transition (Fe³+ +Fe³+ → Fe²+ +Fe⁴+) between Fe³+ and Fe³+ can also cause the absorption band red shift.⁶









3.6. Photocatalytic Activity

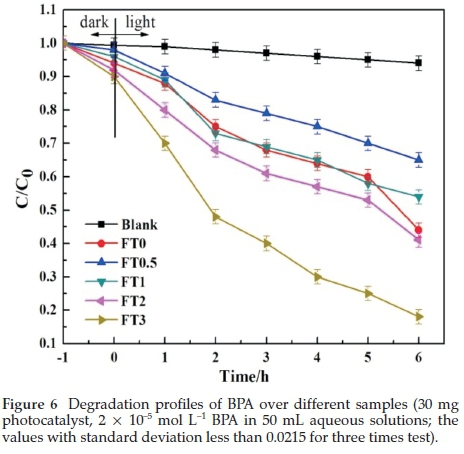

The photocatalytic activities of monolithic TiO₂,Fe₂O/TiO₂ were evaluated by degradation of BPA in water with illumination. Control experiment indicates that BPA can be slightly degraded under 500 W xenon lamp irradiation without catalysts, which indicated that the photocatalytic process played the major role in the BPA degradation. Fig. 6 shows the degradation profiles of BPA wastewater under illumination with various photocatalysts. As one can see, the degradation of BPA by the FT3 is the most significant among all the prepared samples, about 85 % of BPA was degraded after 6 h. The improved activity can be ascribed to the narrow band gap and lower electronic-hole recombination rate of FT3. At the same time, doping of appropriate amounts of Fe can form more Fe (OH)²+.It is favourable for the photocatalytic reaction to have phenol hydroxyl groups and weak acidity. Therefore, a moderate amount of doping of Fe can improve the degradation rate of BPA effectively.





4. Conclusions

The monolithic Fe₂O₃/TiO₂ photocatalysts were successfully synthesized via a one-pot sol-gel process. With the doping of Fe, the surface area of the monolithic Fe₂O₃/TiO₂ increased, the absorption edge appeared red shifted and the electronic-hole recombination rate decreased and its quantum efficiency increased. Appropriate iron doping can improve the degradation rate of BPA effectively. In addition, the monolithic Fe₂O/TiO₂ photocatalysts are easier to recover in a practical application.



Acknowledgements

This work was supported by the Funds of Xi'an Polytechnic University Subject Construction (107090817), and the Cooperative Innovational Center for Technical Textiles, Shaanxi Province (2015ZX-25).



References

1 M. Auriol, Y.F. Meknassi and R.D. Tyagi, Endocrine disrupting compounds removal from wastewater, a new challenge, Process Biochem., 2006, 41, 525-539.         [ Links ]

2 C. Kuo, C. Wu and H. Lin, Photocatalytic degradation of bisphenol A in a visible light/TiO₂ system, Desalination, 2010, 256, 37-42.         [ Links ]

3 N.S. Begum and H.M.F. Ahmed, Synthesis of nanocrystalline TiO₂ thin films by liquid phase deposition technique and its application for photocatalytic degradation studies, Bull. Mater. Sci., 2008, 31, 43-48.         [ Links ]

4 B. Kiliç, N. Gedik, S.P. Mucur, A.S. Hergul and E. Gür, Band gap engineering and modifying surface of TiO₂, nanostructures by Fe₂O₃, for enhanced-performance of dye sensitized solar cell. Mater. Sci. Semicond. Process., 2015, 31, 363-371.         [ Links ]

5 H. Sun, G. Zhou, S. Liu, H. Ang, M. Tadé and S. Wang, Visible light responsive titania photocatalysts codoped by nitrogen and metal (Fe, Ni, Ag, or Pt) for remediation of aqueous pollutants, Chem. Eng. J., 2013, 231, 18-25.         [ Links ]

6 S. Wang, J.S. Lian and WT Zheng, Photocatalytic property of Fe doped anatase and rutile TiO₂ nanocrystal particles prepared by sol-gel technique, Appl. Surf. Sci., 2012,263, 260-265.         [ Links ]

7 W Lv, S.Y. Chen and D.L. Chen, Preparation of Zn doped TiO₂ composite nanofibers by electrospinning, J. Mater. Sci., 2010,124,217-221.         [ Links ]

8 S. Ding, G.W Zhu and R.W. Wang, Synthesis of carbon-doped mesoporous TiO₂ visible-light photocatalytic materials via one pot solvo thermal method, Chem. J. Chinese Univ., 2014, 35,1016-1022.         [ Links ]

9 M. Nasirian, C.F. Bustillolecompte and M. Mehrvar, Photocatalytic efficiency of Fe₂O/TiO₂ for the degradation of typical dyes in textile industries: effects of calcination temperature and UV-assisted thermal synthesis, J. Environ. Manage, 2017,196, 487-498.         [ Links ]

10 P. Xu, Y.S. Li and C. Liu, Preparation and visible-light driven photocatalytic performance of mesoporous titania doped with silver, J. Chinese Ceramic Soc., 2014,14, 1195-1202.         [ Links ]

11 M.V. Dozzi, S. Brocato, G. Marra, G. Tozzola, L. Meda and E. Selli, Aqueous ammonia abatement on Pt-and Ru-modified TiO₂: selectivity effects of the metal nanoparticles deposition method, Catal. Today, 2017, 287,148-154.         [ Links ]

12 C. Noberi, F. Kaya and C. Kaya, Synthesis, structure and characterization of hydrothermally synthesised Ag-TiO₂, nano-structures onto Ni filters using electrophoretic deposition, Ceram. Int., 2016, 42(15), 17202-17209.         [ Links ]

13 K. Tahir, A. Ahmad, B. Li, A.U. Khan, S. Nazir, S. Khan, Z.U.H. Khan and S.U. Khan, Preparation, characterization and an efficient photocatalytic activity of Au/TiO₂ nanocomposite preparedby green deposition method, Mater. Lett, 2016,178, 56-59.         [ Links ]

14 M. Gharagozlou and R. Bayati, Photocatalytic characteristics of single phase Fe-doped anatase TiO₂ nanoparticles sensitized with vitamin B12, Mater. Res. Bull., 2014, 61, 340-347.         [ Links ]

15 S.S. Lee, H. Bai, Z. Liu and D. Sun, Optimization and an insightful properties - Activity study of electrospun TiO₂/CuO composite nanofibers for efficient photocatalytic H₂ generation, Appl. Catal. B: Environ, 2013,140-141, 68-81.         [ Links ]

16 A. Luengnaruemitchai, K. Srihamat, C. Pojanavaraphan and R. Wanchanthuek, Activity of Au/Fe₂O₃-TiO₂, catalyst for preferential CO oxidation, Int. J. Hydrogen Energy, 2015, 40(39), 13443-13455.         [ Links ]

17 J.Y. Li, Z.X. Song, P. Ning, Q.L. Zhang, X. Liu, H. Li and Z.Z. Huang, Influence of calcination temperature on selective catalytic reduction of NOx with NH₃ over CeO₂-WO₃/TiO₂ catalyst, J. Rare Earths, 2015, 33(7), 726-735.         [ Links ]

18 M. Naimi-Joubani, M. Shirzad-Siboni, J.K. Yang, M. Gholami and M. Farzadkia, Photocatalytic reduction of hexavalent chromium with illuminated ZnO/TiO₂composite,J. Ind. Eng. Chem.,2015,22,317-323.         [ Links ]

19 K.R. Wee, B.D. Sherman, M.K. Brennaman, M.V. Sheridan, A. Nayak, L. Alibabaei and T.J. Meyer, An aqueous, organic dye derivatized SnO/TiO₂ core/shell photoanode, J. Mater. Chem. A, 2016, 4(8), 2969-2975.         [ Links ]

20 W. Deng, Q.G. Dai,Y.J. Lao, B.B. Shi andX.Y. Wang, Low temperature catalytic combustion of 1,2-dichlorobenzene over CeO₂-TiO₂ mixed oxide catalysts, Appl. Catal. B: Environ, 2016,181, 848-861.         [ Links ]

21 J.Q. Li, D.F. Wang, Z.Y. Guo and Z.F. Zhu, Preparation, characterization and visible-light-driven photocatalytic activity of Fe-incorporated TiO₂ microspheres photocatalysts, Appl. Surf. Sci., 2012, 263, 382-388.         [ Links ]

22 S. Leong, A. Razmjou, K. Wang, K. Hapgood and X. Zhang, TiO₂ based photocatalytic membranes: a review, J. Membr. Sci., 2014, 472, 167-184.         [ Links ]

23 G.L. Drisko, A. Zelcer and X.D.Wang, Synthesis and photocatalytic activity of titania monoliths prepared with controlled macro- and mesopore structure, Appl. Mater. Inter., 2012,4, 4123-130.         [ Links ]

24 J.F. Lei,X.P. Li, W.S. Li, Photocatalytic degradation of methyl orange on arrayed porous iron-doped anatase TiO₂. J. Solid State Electrochem, 2012,16, 625-632.         [ Links ]

25 Q.Q. Wang, S.H. Xu and F.L.Shen, Preparation and characterization of TiO₂ photo-catalysts co-doped with iron (III) and lanthanum for the degradation of organic pollutants. Appl. Surf. Sci., 2011, 257, 7671-7677.         [ Links ]

26 N. Wu, Q.F. Wei and L. Chen, Preparation, characterization and photocatalytic properties of Fe³+doped TiO₂nanofibers, J. Textile Res., 2011, 32, 5-9.         [ Links ]

27 G.H. Xu and J.G. Yu, Visible-light-induced photo-electrochemical behaviors of Fe modified TiO₂ nanotube arrays, Nanoscale, 2011, 3, 3138-3144.         [ Links ]

28 S.D. Deldkar, H.M. Yadav, S.N. Achary, S.S. Meena and S.H. Pawar, Structural refinement and photocatalytic activity of Fe-doped anatase TiO₂ nanoparticles, Appl. Surf. Sci., 2012, 263, 536-545.         [ Links ]

29 G.R. Yang, Q. Zhang, W. Chang and W. Yan, Fabrication of Cd_1-xZn_xS/ TiO₂ heterostructures with enhanced photocatalytic activity, J. Alloy. Compd., 2013, 580, 29-36.         [ Links ]





Received 14 March 2017
Revised 11 September 2017
Accepted 13 September 2017





* To whom correspondence should be addressed. E-mail: changwei72@163.com
