SHORT COMMUNICATION



Standardisation of alien invasive Australian redclaw crayfish Cherax quadricarinatus sampling gear in Africa





TC Madzivanzira^{I, II}; J South^{II, III}; T Nhiwatiwa^{IV, V}; OLF Weyl^{I, II, III, †}

^IDepartment of Ichthyology and Fisheries Science, Rhodes University, Makhanda 6140, South Africa
^IIDSI/NRF Research Chair in Inland Fisheries and Freshwater Ecology, South African Institute for Aquatic Biodiversity (SAIAB), Makhanda 6140, South Africa
^IIICentre for Invasion Biology, South African Institute for Aquatic Biodiversity (SAIAB), Makhanda 6140, South Africa
^IVDepartment of Biological Sciences, University of Zimbabwe, PO Box MP 167, Mt. Pleasant, Harare, Zimbabwe
^VUniversity of Zimbabwe Lake Kariba Research Station, PO Box 48, Kariba, Zimbabwe

Correspondence





---

ABSTRACT

Freshwater crayfish are damaging invaders across southern Africa; however, monitoring techniques and efforts are disparate across the region as different sampling methods have been used. To develop a standard method for assessing redclaw crayfish Cherax quadricarinatus abundance, a survey was conducted to assess for differences in detection and catch per unit effort (CPUE) in Lake Kariba. Two sampling approaches were compared: opera traps baited with cooked maize meal historically used in crayfish surveys in Zimbabwe, and Promar collapsible traps baited with dry dog food, which have been used for assessments in South Africa and Swaziland. Baits were compared in the Barotse Floodplain in Zambia using the Promar trap. Detection probability (P_capture) and CPUE were significantly lower for opera traps baited with cooked maize meal (P_capture = 0.41; CPUE = 1.19 ± 0.24 ind.•trap ^-1•night ^-1) compared to the Promar traps baited with dry dog food (P_capture = 0.67; CPUE = 4.53 ± 0.82 ind•trap ^-1•night ^-1). The P_capture and CPUE for Promar traps baited with dog food (P_capture = 0.89; CPUE = 4.29 ± 0.83 ind•trap^-1•night ^-1) was significantly higher than for maize meal baited traps (P_capture = 0.29; CPUE = 0.25 ± 0.17 ind•trap ^-1•night ^-1). Sex ratio and carapace length of crayfish sampled did not differ between sampling methods. Due to higher CPUE, the authors consider the Promar collapsible trap baited with dog food approach as the better method for determining crayfish population abundance and suggest that comparisons of abundance take this into consideration by applying conversion factors if different methods are applied.

Keywords: Barotse Floodplain; crayfish; freshwater; Lake Kariba; opera trap; Promar trap; bait type

---





INTRODUCTION

Multiple alien and invasive freshwater crayfish have escaped from captivity and invaded African freshwater ecosystems (Madzivanzira et al., 2020). One species of concern is the Australian redclaw crayfish Cherax quadricarinatus (Von Martens, 1868), which has invaded the Zambezi River Basin and several other rivers in southern Africa, where it is rapidly spreading (Madzivanzira et al., 2020). In the Zambezi Basin, wild populations of C. quadricarinatus were reported in the Kafue River, Lake Kariba and the Barotse Floodplain after accidental and intentional introductions (Madzivanzira et al., 2020). In order to understand the invasion process, implement management measures or undertake impact assessments, comparable data on presence and abundance are required (Larson and Olden, 2016; Madzivanzira et al., 2020).

Common sampling methods for crayfish include active methods, such as collecting by hand, electrofishing and direct underwater or bankside observation, and passive methods such as the use of baited traps (Williams et al., 2014; Larson and Olden, 2016). Baited traps are the most commonly applied method (Larson and Olden, 2016). While a variety of traps have been used in crayfish surveys in Africa (see Madzivanzira et al., 2020), two designs - opera traps (Marufu et al., 2014, 2018) and Promar collapsible traps (Nunes et al., 2017) - are the most commonly applied methods for sampling C. quadricarinatus in southern Africa. Bait also differs between surveys, with choices including cooked maize meal (e.g. Marufu et al., 2014, 2018) and dry dog food pellets (e.g. Nunes et al., 2017). As both trap design and bait type have been shown to influence freshwater crayfish catch rates (Huner, 1988; Huner and Paret, 1995), different sampling methods can result in disparate results in surveys seeking to estimate abundance or even the distribution of crayfish. Research into developing standardised field sampling approaches is therefore required (Madzivanzira et al., 2020).

Here, this study presents field experiments to compare the sampling approaches employed by Marufu et al. (2014, 2018) and Nunes et al. (2017) in Lake Kariba, Zimbabwe, and to assess the influence of bait choice in the Barotse Floodplain, Zambia. The central hypothesis was that there would be no difference between methods with regard to detection probability (the proportion of traps containing at least one crayfish), catch rate (number of individuals per trap per night), crayfish size and sex ratio. This study further re-calculates catch data collected using the sampling method with the lowest CPUE, in order to have cohesive population abundance estimates throughout the region.



MATERIALS AND METHODS

Study site

The gear comparison study was carried out at 10 locations in the Sanyati Basin in the Zimbabwean section of Lake Kariba, between 27 November and 5 December 2018 (Fig. 1). Lake Kariba is the world's largest man-made lake (by volume) and is located along the Zambezi River and shared between Zambia and Zimbabwe, forming part of the Middle Zambezi Biosphere Reserve (Magadza et al., 2020). During the survey in Lake Kariba, the average ± SE water temperature was 28.39 ± 0.40°C, pH 7.66 ± 0.10, dissolved oxygen 7.43 ± 0.83 mg∙L^-1, conductivity 229.50 ± 4.90 μS∙cm^-1, TDS 147.65 ± 2.76 mg∙L^-1, salinity 0.07 ± 0.01 and tur-bidity 16.92 ± 2.76 NTU.

The bait comparison experiments were carried out at 3 locations on the Barotse Floodplain in Zambia between 16 and 18 October 2019 (Fig. 1). During the survey in the Barotse Floodplain, the average ± SE water temperature was 26.15 ± 0.08°C, pH 7.78 ± 0.24, dissolved oxygen 9.21 ± 0.97 mg∙L^-1, conductivity 177.17 ± 14.89 μS∙cm^-1, TDS 116.50 ± 9.70 mg∙L^-1, salinity 0.06 ± 0.01 and turbidity 17.47 ± 3.14 NTU.

Comparison of sampling approaches

The opera crayfish trap (dimensions: 100 × 50 × 30 cm; mesh size: 10 mm) and the Promar collapsible crayfish trap (dimensions: 61 × 46 × 20 cm; mesh size: 10 mm) were used in this survey (Fig. 2). The opera trap entrance has a fixed circular area of 78.5 cm² whilst that of the Promar collapsible trap is flexible and can widen to a rectangular area of 460 cm². The opera traps were baited with approximately 100 g of cooked maize meal (hereafter referred to as opera_mm) and Promar collapsible traps were baited with 100 g of Bobtail dry dog food pellets, steak flavour (hereafter referred to as Promar_df). Both baits were placed in nylon stockings which were tied inside the trap and suspended ≈ 5 cm from the bottom of the trap (Fig. 2b).

At each sampling locality the physio-chemical variables (temperature, pH, dissolved oxygen saturation, turbidity, electrical conductivity and salinity) were measured using an AP-700 Aquaread multimeter and traps were deployed in pairs, comprising of an opera_mm sampling gear and one Promar_df gear deployed at least 10 m apart to minimise potential interaction between the methods. A total of 98 and 102 opera_mm and Promar_df gears, respectively, were deployed over night at depths of ≤5 m. On retrieval, the number of crayfish caught in each trap was recorded and each crayfish was measured for carapace length (CL), weighed (to the nearest gram) and sexed.

Bait comparison

The bait study was carried out in the Barotse Floodplain to compare bait efficiency in the Promar collapsible traps. Twenty-eight pairs of Promar collapsible traps baited with either cooked maize meal or dog food were deployed overnight, at least 10 m apart, at depths of ≤5 m. On retrieval, the number of crayfish caught in each trap was recorded and each crayfish was measured for CL, weighed (to the nearest gram) and sexed.

Data analysis

The STATISTICA software package (version 7.1; Statsoft, Inc.) was used to conduct the analysis. Differences in the habitat as well as physio-chemical variables in this survey were not considered to be influencing factors, as the gears with different baits were deployed simultaneously in the same environment. Detection probability (P_capture) was expressed as the number of traps containing at least one crayfish as a proportion of all traps set. Catch rate was expressed as catch per unit effort (CPUE) as the mean number of individuals caught per trap per night set. The Shapiro-Wilk test of normality failed to reject the null hypothesis that CPUE data were normally distributed for the Promar_df sampling method (w = 0.86, p = 0.08) and rejected the null hypothesis that CPUE data were normally distributed for the opera_mm sampling method (w = 0.82, p = 0.03), and hence the data were log-transformed. A t-test was used to test for CPUE differences between the sampling methods. The P_capture were analysed with contingency tables, and the differences in P_capture between the two gears were tested with a Chi-square statistical test. The relationship between CPUE from the sampling methods was explored using linear regression to estimate a conversion factor for data standardisation. A Kolmogorov-Smirnov two-sample test was used to test whether CL distributions from the sampling methods differed significantly. Finally, sex ratios between the sampling methods were compared using contingency tables and tested using Chi-square analysis.



RESULTS

Comparison of sampling approaches

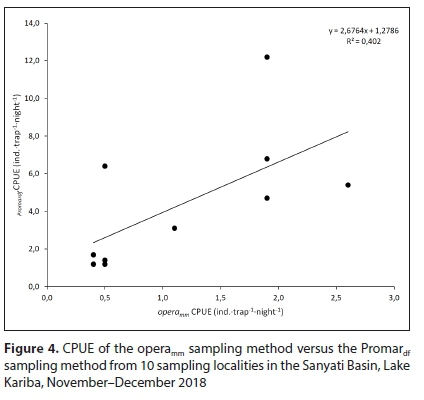

In Lake Kariba, 572 crayfish were caught during this survey. Of these, 116 were caught by the opera_mm method and 456 were caught using the Promar_df method. Overall P_capture for the opera_mm method (0.41) was significantly lower (χ2 = 13.90, df = 1, P = 0.0002) than that for Promar_df (0.67) method. Mean (± SE) CPUE for the opera_mm method (1.19 ± 0.24 ind·trap^-1·night^-1) was significantly lower (t (18) = 2.84, P = 0.01) than that for the Promar_df method (4.53 ± 0.82 ind·trap^-1·night^-1). The CL distribution of C. quadricarinatus (see Fig. 3 for CL distributions) did not differ significantly (K-S, D = 0.05; p = 0.98). The overall female to male ratio for opera_mm (1:1.06) was not significantly different (χ2 = 0.54, df = 1, P = 0.46) from that of the Promar_df method (1:1.22). Regression analysis indicated a weak correlation between CPUE of the two sampling approaches (R² = 0.40) which was best explained by the relationship: CPUEPromar_df = 2.68·CPUEopera_mm + 1.28 (Fig. 4). Data collected using opera_mm can therefore be up-calculated using the equation in Fig. 4 (see Table 1 for final CPUEs).









Bait study

In the bait experiment on the Barotse Floodplain, 121 of the 128 C. quadricarinatus were caught in traps baited with dog food and 7 in traps baited with cooked maize meal. Overall P_capture for traps with dog food (0.89) was significantly higher (χ2 = 23.63, df = 1, P = 0.000001) than that for cooked maize meal (0.29). Mean (± SE) CPUE for dog food bait (4.29 ± 0.83 ind·trap^-1·night^-1) was significantly higher (t (2) = 3.43, P = 0.03) than cooked maize meal bait (0.25 ± 0.17 ind·trap^-1·night^-1). Insufficient crayfish specimens were captured with maize meal bait for meaningful comparison on CL and sex ratio.



DISCUSSION

The objective of this study was to determine the more effective of the two sampling approaches used for C. quadricarinatus in southern Africa, an important step towards standardising crayfish sampling methods in Africa (Madzivanzira et al., 2020). On Lake Kariba, detection probability and CPUE were significantly higher for Promar_df than for opera_mm. Sex ratio and size structure did not, however, differ between sampling approaches. In addition, the bait type experiment demonstrated that the use of dog food pellets as bait resulted in higher CPUE and superior detection probability over cooked maize meal. The results demonstrate that, CPUE data from the opera_mm method require up-calculation by a factor of 2.68 to enable comparisons with data obtained using the Promar_df method for C. quadricarinatus.

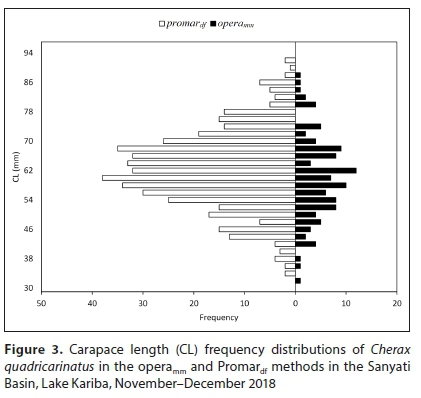

Neither the proportion of females to males as well as the CLs differed between the two sampling approaches. However, it should be noted that although the two sampling approaches captured a wide range of crayfish sizes, with total and carapace length ranges of 65 to 197 mm and 32 to 91 mm, respectively, juveniles with CL less than 32 mm were poorly represented overall. As crayfish trapping is a passive sampling method that is not only dependent on overall crayfish abundance, but also behaviour, this will unavoidably interact with trapping results in potentially complex ways (Dorn et al., 2005). Large and aggressive crayfish, which normally favour baited traps (Brown and Brewis, 1978; Capelli and Magnuson, 1983), often tend to defend traps as habitat and exclude smaller individuals (Ogle and Kret, 2008), which may account for the observed low percentage of juveniles.

Effectiveness of the dog food bait in attracting crayfish may be related to its high crude protein content (180 g∙kg^-1) compared to that of cooked maize meal (50∙84 g∙kg^-1). Baits with high-protein content are considered effective for crayfish (Huner and Barr, 1980). Other high-protein baits have been found to produce similar catch results as that of the dog food (Larson and Olden, 2016). Somers and Stechey (1986) did not find any significant CPUE differences for Cambarus bartonii (Fabricius, 1798) and Faxonius virilis (Hagen, 1870) between liver, fish, chicken, canned cat food and dog food baits. Mhlanga et al. (2020) showed that the CPUE of traps baited with liver, cooked maize meal and fish heads were not significantly different. These baits can be suitable for crayfish exploitation purposes but not for standardised surveys (Mhlanga et al., 2020). Dog food is suitable as a standard bait as it is easy to handle, store and requires less time to prepare for fieldwork and can be standardised. Other baits - for example, fish - would need to be standardised according to species, size and condition, which would make the standardisation process across the region cumbersome. An example is the sampling of Procambarus clarkii (Girard, 1858) in Mimosa Dam, Free State Province in South Africa, using fish heads (of common carp Cyprinus carpio, Orange River mudfish Labeo capensis and moggel, Labeo umbratus) (Barkhuizen et al., n.d.).

Although baited traps are biased towards large male crayfish, they have been the preferred method of sampling crayfish in many population and distribution studies, as traps can be successfully deployed in most habitats (Gherardi et al., 2011; Stebbing, 2016; De Palma-Dow et al., 2020). Recently, a novel 'triple drawdown' (TDD) method was developed to sample invasive populations of P. leniusculus in northern England (Chadwick et al., 2020). This method revealed large numbers of juveniles which, however, were not detectable using traditional methods. However, this method is only possible in smaller streams and with the correct technical infrastructure. Other crayfish sampling methods that can be used include snorkel surveys and environmental DNA (eDNA) (Chadwick et al., 2020), but these seem to be less commonly used owing to the required technical expertise (Stebbing, 2016). Moreover, some aquatic environments in Southern Africa are characterised by poor light conditions and low water clarity may limit the application of underwater surveys, leaving baited traps to be the most suitable method.

Standardisation and affirmation of crayfish trapping gear capacities in the southern African region is essential information for further work on the subject (Madzivanzira et al., 2020). Due to higher P_capture and CPUE across multiple sampling sites, the Promar collapsible crayfish trap baited with dog food could be considered as the most appropriate gear for crayfish abundance studies in Africa. The findings that the two gears used in this study differed in their efficiency suggests that application of a correction factor is necessary when comparing population abundance estimates in the region.



ACKNOWLEDGEMENTS

This article is dedicated in honour of Prof. Olaf LF Weyl who passed away suddenly on 14 November 2020, and without whom all of this work would not have been possible. This study forms part of a PhD research project supported by the National Research Foundation (NRF)-South African Research Chairs Initiative of the Department of Science and Innovation (DSI) (Inland Fisheries and Freshwater Ecology, Grant No. 110507). This research was also supported by the World Wide Fund for Nature (WWF) Upper Zambezi Programme that is funded by DOB Ecology. JS and OLFW acknowledge funding from the DSI-NRF Centre of Excellence for Invasion Biology (CIB). We acknowledge use of infrastructure and equipment provided by the NRF‐SAIAB Research Platform and the funding channelled through the NRF‐SAIAB Institutional Support system. We are grateful to the University of Zimbabwe Lake Kariba Research Station (ULKRS) staff, with particular mention of Godwin Mupandawana for the essential help in this survey. This research was given ethics clearance by the SAIAB Animal Ethics Committee (Ethics No. 25/4/1/7/5) and Animal Ethics Subcommittee, Rhodes University (Ethics No. DIFS2718). Any opinion, finding and conclusion or recommendation expressed in this material is that of the authors. The NRF of South Africa does not accept any liability in this regard. We also thank two anonymous reviewers and the handling editor for their valuable comments which improved this manuscript.



AUTHOR CONTRIBUTIONS

All authors conceived the ideas and designed the methodology; OLFW provided the funding; TCM and JS conducted the fieldwork; TCM and JS analysed the data; TCM led the writing of the manuscript. All authors contributed critically to the drafts and gave final approval for publication.

ORCID

TC Madzivanzira https://orcid.org/0000-0001-9683-5798

J South https://orcid.org/0000-0002-6339-4225

T Nhiwatiwa https://orcid.org/0000-0002-5295-0724

OLF Weyl https://orcid.org/0000-0002-8935-3296



REFERENCES

BARKHUIZEN LM, MADZIVANZIRA TC and SOUTH J (n.d.) First record of a wild population of red swamp crayfish Procambarus clarkii (Girard, 1852) in the Free State Province, South Africa. Bioinvasions Records. (Unpublished document.         [ Links ])

BROWN DJ and BREWIS JM (1978) A critical look at trapping as a method of sampling a population of Austropotamobius pallipes (Lereboullet) in a mark and recapture study. Freshwater Crayfish. 4 159-164.         [ Links ]

CAPELLI GM and MAGNUSON JJ (1983) Morphoedaphic and biogeographic analysis of crayfish distribution in northern Wisconsin. J. Crust. Biol. 3 548-564. https://www.jstor.org/stable/1547950        [ Links ]

CHADWICK DDA, PRITCHARD EG, BRADLEY P, SAYER CD, CHADWICK MA, EAGLE LJB and AXMACHER JC (2020) A novel 'triple drawdown' method highlights deficiencies in invasive alien crayfish survey and control techniques. J. Appl. Ecol. 58 (2) 316-326. https://doi.org/10.1111/1365-2664.13758        [ Links ]

DE PALMA-DOW AA, CURTI JN and FERGUS CE (2020) It's a trap! An evaluation of different passive trap types to effectively catch and control the invasive red swamp crayfish (Procambarus clarkii) in streams of the Santa Monica Mountains. Manage. Biol. Invasions. 11 (1) 44-62. https://doi.org/10.3391/mbi.2020.11.1.04        [ Links ]

DORN NJ, URGELLES R and TREXLER JC (2005) Evaluating active and passive sampling methods to quantify crayfish density in a freshwater wetland. N. Am. Benthol. Soc. 24 346-356. https://doi.org/10.1899/04-037.1        [ Links ]

GHERARDI F, AQUILONI L, DIÉGUEZ-URIBEONDO J and TRICARICO E (2011) Managing invasive crayfish: is there a hope? Aquat. Sci. 73 185-200. https://doi.org/10.1007/s00027-011-0181-z        [ Links ]

HUNER JV and BARR JE (1980) Red swamp crawfish: Biology and exploitation. Louisiana State University, Sea Grant Program, LSU-T-80-001, Baton Rouge.         [ Links ]

HUNER JV (1988) Procambarus in North America and elsewhere. In: Holdich DM and Lowery RS (eds) Freshwater Crayfish: Biology, Management and Exploitation. Croom Helm (Chapman & Hall), London.         [ Links ]

HUNER JV and PARET J (1995) Trap harvest of crawfish (Procambarus spp.) from a South Louisiana commercial pond: effectiveness of different baits and species composition. Freshwater Crayfish. 8 376-390. https://doi.org/10.5869/fc.1995.v8.376        [ Links ]

LARSON ER and OLDEN JD (2016) Field sampling techniques for crayfish. In: Longshaw M and Stebbing P (eds) Biology and Ecology of Crayfish (1^st edn). CRC Press, Boca Raton.         [ Links ]

MADZIVANZIRA TC, SOUTH J, WOOD L, NUNES AL and WEYL OLF (2020) A review of freshwater crayfish introductions in continental Africa. Rev. Fish. Aquaculture. 29 (2) 218-241. https://doi.org/10.1080/23308249.2020.1802405        [ Links ]

MAGADZA CHD, MADZIVANZIRA TC and CHIFAMBA PC (2020) Decline of zooplankton food resources of Limnothrissa miodon fishery in Lake Kariba: Global warming induced ecosystem disruption by Cylindrospermopsis raciborskii. Lakes Reservoirs Sci. Polic. Manage. 25 117-132. https://doi.org/10.1111/lre.12318        [ Links ]

MARUFU LT, PHIRI C and NHIWATIWA T (2014) Invasive Australian crayfish Cherax quadricarinatus in the Sanyati basin of Lake Kariba: a preliminary survey. Afr. J. Aquat. Sci. 39 233-236. https://doi.org/10.2989/16085914.2014.922457        [ Links ]

MARUFU L, BARSON B, CHIFAMBA P, TIKI M and NHIWATIWA T (2018) The population dynamics of a recently introduced crayfish, Cherax quadricarinatus (Von Martens, 1868), in the Sanyati Basin of Lake Kariba, Zimbabwe. Afr. Zool. 53 (1) 17-22. https://doi.org/10.1080/15627020.2018.1448719        [ Links ]

MARUFU LT, BARSON M, PHIRI C and NHIWATIWA T (2020) Spatial and temporal distribution of an invasive crayfish (Cherax quadricarinatus) in Lake Kariba, Zimbabwe. Lakes Reservoirs Sci. Polic. Manage. 25 (4) 394-402. https://doi.org/10.1111/lre.12345        [ Links ]

MHLANGA L, MARUFU L, MUPANDAWANA G and NHIWATIWA T (2020) An examination of the effectiveness of traps and baits as a possible means of harvesting crayfish, Cherax quadricarinatus in Sanyati Basin, Lake Kariba, Zimbabwe. Water SA. 46 (4) 675-678. https://doi.org/10.17159/wsa/2020.v46.i4.9083        [ Links ]

NUNES AL, ZENGEYA TA, HOFFMAN AC, MEASEY GJ and WEYL OLF (2017) Distribution and establishment of the alien Australian redclaw crayfish, Cherax quadricarinatus, in South Africa and Swaziland. PeerJ. 5 1-21. https://doi.org/10.7717/peerj.3135        [ Links ]

OGLE DH and KRET L (2008) Experimental evidence that captured rusty crayfish (Orconectes rusticus) exclude uncaptured rusty crayfish from entering traps. J. Freshwater Ecol. 23 (1) 1-10. https://doi.org/10.1080/02705060.2008.9664563        [ Links ]

SOMERS KM and STECHEY DPM (1986) Variable trappability of crayfish associated with bait type, water temperature and lunar phase. Am. Midland Naturalist. 116 36-44. https://doi.org/10.2307/2425935        [ Links ]

STATSOFT, INC. (2006) STATISTICA (data analysis software system), version 7.1.         [ Links ]

WILLIAMS K, BREWER SK and ELLERSIECK MR (2014) A comparison of two gears for quantifying abundance of lotic-dwelling crayfish. J. Crust. Biol. 34. 54-60. https://doi.org/10.1163/1937240X-00002212        [ Links ]





Correspondence:
TC Madzivanzira
Email taku1945@live.com

Received: 2 September 2020
Accepted: 5 July 2021





† deceased
