Radiofrequency Electromagnetic Radiation Exposure Assessment, Analysis, Computation, and Minimization Technique in 5G Networks: A Perspective on QoS Trade-Offs





Adedotun T. Ajibare^I; Sunday O. Oladejo^II; Stephen O. Ekwe^III; Lateef A. Akinyemi^IV; Daniel Ramotsoela^V

^IDepartment of Electrical Engineering, University of Cape Town, Cape Town, and the NewBridge Graduate Institute, Cape Town, South Africa (e-mail: ajbade004@myuct.ac.za)
^IISchool for Data Science and Computational Thinking, Stellenbosch University, Stellenbosch (e-mail: sunday@sun.ac.za)
^IIIDepartment of Electrical Engineering, University of Cape Town, Cape Town(e-mail: ekwste001@myuct.ac.za)
^IVDepartment of Electronic and Computer Engineering, Faculty of Engineering, Lagos State University, Lagos, Nigeria and Departments of Computer Science and Electrical Engineering, Schools of Computing and Engineering, College of Science, Engineering and Technology, University of South Africa, Johannesburg, South Africa(e-mail: lateef.akinyemi@lasu.edu.ng)
^VDepartment of Electrical Engineering, University of Cape Town, Cape Town, South Africa (e-mail: daniel.ramotsoela@uct.ac.za)





---

ABSTRACT

In this study, the specific absorption rate (SAR) and exposure index (EI) of access points (APs) and user equipment (UEs) in fourth-generation (4G) and fifth-generation (5G) wireless technologies are examined with regard to the effects of exposure to radiofrequency (RF) electromagnetic fields (EMF) radiation and the implications of their reduction. We characterize the EI using a classical mathematical method while considering the power density, the SAR, the electric field strength, and the tissue's density and conductivity. As such, a novel exposure-index open-loop power control algorithm is proposed to evaluate the realistic RF-EMF radiation exposure on human users from both the downlink (DL) and uplink (UL) communication devices. To solve an EI minimization problem using the open-loop power control algorithm, we formulate it in the form of a mixed-integer nonlinear programming (MINLP) problem. As the energy capacity (i.e., power density) in wireless networks determines the radiation exposure (SAR and EI), it minimizes the EI by controlling and managing the transmitted and received powers under the restrictions of Quality of Service (QoS), interference, and power, while ensuring the users' QoS requirements are met. Our proposed scheme is numerically compared to other heuristic algorithms and exposure limits established by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) and other similar organizations. Lastly, we compare the emissions from 4G and 5G networks to the emissions from UL and DL transmissions. Our simulation findings indicate that our proposed technique is a good alternative. Our assessment, in terms of numerical results and evaluation, also verifies that the exposures are bearable, fall within the recommended limits, and are minimized without impairing the users' QoS.

Index Terms: RF radiation, 5G networks, power control, MINLP, specific absorption rate, exposure index.

---





I. INTRODUCTION

A. Background

Recently, there has been a proliferation of user equipment (UE) for communication purposes [1]-[3]. The gains in high-throughput, low latency, high QoS, massive connections, and high reliability in 4G and 5G mobile communications [4], [5] have occasioned wireless entry points (or simply put access points (APs)) and a fixed transceiver/base stations (BSs) being installed at an increased rate [6]. With the advent of 5G networks, it is expected that the operating frequency could extend into the millimeter wave band range (i.e., 28GHz - 39GHz) to meet the extreme bandwidth requirements of uses such as online games, high-quality streaming media, and interactive gaming. However, such high operating frequencies cause APs or BSs to have smaller coverage footprints, which results in the densification of access points.

Consequently, there have been rising health concerns in several works of literature about the Radio Frequency (RF)-Electromagnetic Field (EMF) in mobile networks [7]-[10]. Health experts are alarmed by the rise in UEs and radiation exposure to humans. Our work examines how exposure to EMFs from mobile communications affects people. Understanding EMFs in the context of mobile communications is crucial to achieving this.

The emission and transmission of energy through a medium, matter, or space, is the simplest definition of radiation. The transfer of energy packets (i.e., photons with electrical and magnetic properties) at a constant speed is referred to as 'electromagnetic radiation' (EM) [11]. EM radiation exposure can be broadly categorized as either [7]: (i) Ionizing, or (ii) Non-ionizing. Ionizing radiations cause reactions in and damage to the chemical structures of biological tissues (i.e., living cells) owing to the freeing of energized electrons from a living cell's atom [7], [12]. Ionizing radiations have extremely short wavelengths with frequencies ranging between 10¹⁶Hz - 10²¹Hz. They include x-rays, gamma rays, and the upper frequencies of ultraviolet (UV) rays, otherwise known as 'extreme ultraviolet' (EUV). Although ionizing radiations are not visible to the eyes, exposure to them can be cancerous to living tissues, alter DNA structures, and lead to premature death. Figure 1 illustrates the frequency ranges, categories, and wavelengths, respectively, of the EM spectrum.

Non-ionizing radiations do not possess sufficient energy to liberate an electron from a living cell's atom, though their energy is sufficient to produce excitation [7], [13]. Therefore,

they may not result in severely harmful effects on body tissue. Non-ionizing radiations are characterized by very low frequencies in the range 0 - 10¹⁴Hz and include radio waves, microwaves, infrared, visible light, and ultraviolet. The energy levels of ionizing radiations fall between 4.1 ×10^-6eV and 1.2 ×10^-3eV, which is below the minimum energy threshold (i.e., 5eV) of ionizing radiations. There are growing worries about the dangers mobile communication devices and APs pose to the public's health and safety, even though the operating frequencies of mobile communication systems (MCS) do fall into the categories of radio waves and microwaves, which do not pose a serious risk. This paper addresses radiation exposure caused by the MCS, focusing on non-ionizing radiations.

Metrics such as the Exposure Index (EI), Specific Absorption Rate (SAR), EMF strength, and Power Density (PD) have been employed in measuring the levels of radiation exposure to RF-EMF sources [14]-[17]. The SAR measures levels of EMF radiated energy absorbed by the human body when exposed to radiation sources such as cell phones, tablets, and other mobile UEs [9], [18]. To further express the SAR measure in the living tissue, it is characterized as either the [7], [9]: (i) whole body averaged SAR, or (ii) organ-specific SAR, which is local to a part of the body, such as the brain [19]. The closer the EMF source is to the body, the higher the SAR [18], [19].

Unlike the SAR, which addresses EMF radiation exposure for near-field sources, PD is the metric employed to determine radiation exposure to a far-field source. PD is employed when investigating EMFs operating at high frequencies such that temperatures rise and heating is lost to the environment [7]. The EI is the global EMF radiation exposure level of a population of mobile users under a defined network coverage footprint and over a specific time duration [11], [17], [20]. It entails the aggregation of radiation exposures of individuals in a defined area to an EMF source; in our case, the AP or base stations. Additionally, the EI takes into consideration the contribution of the radiation exposure caused by UEs.

A magnetic and electric component make up an EMF produced by an RF source. The amount of current and the potential difference directly correlate with the EMF's intensity.

To reiterate, this work does not address network mobility. However, it should be noted that mobile network handover [21] can significantly impact SAR. When a mobile device switches between networks, there can be a sudden surge in the amount of RF energy emitted, leading to a higher SAR value. Furthermore, frequent network switching can result in a cumulative effect that increases SAR values over time. Therefore, it is essential to set devices at the lowest powerlevel possible to minimize SAR. In addition, switching between different mobile networks (vertical handover) may require more RF energy to establish and maintain a connection, leading to higher SAR levels.

B. Contributions

To assess and determine the specific absorption rate and the exposure index, we calculate the user-to-AP distances d [m], the APs' effectual antenna gains G [dBi], the user-toserving AP path losses PL dBm, the electric field strengths [V/m], spectral power densities [W/m²], effective isotropically radiated powers measured in [dBm], magnetic field strengths measured in [A/m], the cross-sectional areas [m2] and transmit and receive powers with open-loop control measured in dBm, and notationally and symbolically denoted by E, S, EIRPs, H, CSA, Ptx, and Prx, respectively.

To analyze the radiation exposure caused by wireless networks via simulating the various 4G and 5G network systems, the data obtained by the generated RF-EMF exposure of the given area must be defined. This study, in contradiction to other studies, takes into account computational data to assess and analyze RF-EMF exposure emanating from portable devices, that is, uplink (UL), and broadcasting access points, that is, downlink (DL). The following is a summary of the paper's main contributions.

•We consider the SAR and EI in a multi-cell 5G network. To reduce the network's overall EI, an optimization problem known as 'EI minimization' is devised. This system effectively reduces customers' radiation exposure while ensuring the required Quality of Service (QoS) is met and maximum interference is not exceeded. In minimizing the EI, network parameters such as transmit power, data rate threshold, base station height, cell coverage radius, and human-body characteristics such as conductivity and mass density are taken into consideration.

•As stated, the EI minimization issue is expressed as an optimization mixed-integer nonlinear programming (MINLP) problem. We exploit the idea of the Fractional Power Open Loop Control (FPOLC) algorithm in optimizing the EI minimization framework. For uplink transmission, the FPOLC regulates the UE's transmit power. An EI-based Power Control Algorithm is proposed, which takes into consideration the network and human-body parameters stated in the previous bullet point.

•A straightforward propagation model is used to derive the mathematical expressions for the EMF exposure metric, which takes into account network characteristics including the path loss exponent, transmit power, electric field strength, characteristic impedance, antenna efficiency, and antenna directivity.

•Through comprehensive simulations, we show the effectiveness of the suggested EI minimization framework. Different scenarios' performances are taken into account. Additionally, we look at the EI exposure for both the more current 5G gNB and users as well as 4G eNB and users.

C. Organization

This paper is ordered as follows: Section II gives a detailed summary of related works. The system model is thoroughly described in Section III. The global EI minimization problem is formulated as a resource allocation optimization problem in Section IV. In Section V, the proposed solutions are discussed. Section VI presents and discusses the simulation results. Finally, our conclusion is drawn in Section VII.



II. RELATED WORKS

Network infrastructure and services in densely populated urban cities are made sustainably smart (especially the antenna design) to make the environment more friendly, inhabitable, and safe [22], [23]. In the literature, several works such as [24]-[29] have considered 5G networks' QoS from a resource allocation perspective, but did not address RF-EMF radiation. The authors in [30] explore a step-by-step resource allocation method for optimizing resources in massive MIMO-OFDMA DL systems. They used the calculated bandwidth of each user to allocate the power and the number of access point antennas. The average signal-to-noise ratio and bit rate received by the user are set as parameters to allocate resources in the proposed multi-user MIMO energy efficiency water injection algorithm. Rising health concerns [31], [32] in the literature on RF exposure due to mobile networks' operation make it imperative to consider this factor in the design of mobile networks.

The work in [33] generated a brief overview of RF-EMF radiation EI in 5G networks. The author raised critical questions that serve as research challenges and bridge the knowledge gap concerning 5G's RF-EMF radiation exposure's effect on body tissues. Furthermore, the works in [34]-[37], among others, concentrated on the effects of RF exposure on the human brain. Specifically, the authors addressed the exposure caused by UL transmission. They did not address the RF exposure due to DL transmission, and therefore a global RF exposure was not captured in the works.

In [38], the authors proposed a simplified method for determining a population's RF's EI in an LTE network situated in an urban area. The proposed method is premised on surrogate modeling for daily global population EI estimates, considering both the UL and DL transmission. The surrogate method, which helps to reduce computational complexity and time, employs Polynomial Chaos Expansion (PCE), which relies on Least Angle Regression Selection (LARS). The proposed method considered network parameters such as propagation path loss, network utilization, and throughput. The authors considered the sensitivity analysis of the network parameters. However, the authors did not consider the SAR of the 5G networks. Additionally, they did not address the evaluation of the EI metric.

The authors of [39] carried out RF radiation exposure level measurement tests in locations in Dar es Salam, Tanzania, for mobile networks in 900MHz and 1800MHz (i.e., GSM), and 2100MHz (i.e., UMTS) frequency bands, based on the International Commission for Non-Ionizing Radiation Protection (ICNIRP) guidelines [15]. The parameters measured in [39] were the power density, and electric and magnetic fields, respectively, with the aid of a selective radiation meter (i.e., SRM 3006 tool). The authors did not consider the radiation measurement due to the UL transmission. Moreover, the authors in [39] did not address global radiation exposure metrics, such as the SAR and EI. They also did not consider the 5G network, which has peculiar network parameters and configurations such as higher operating frequencies and high network density.

Unlike [39], the work in [40] considered the measurement of radiation exposure in 5G networks with frequencies in the range 800MHz-3600MHz. It took into account both UL and DL radiations. In [40], the authors carried out RF radiation measurement tests for both the base station transmissions (i.e., DL) and UL transmissions (i.e., uplink from a handheld device) in an area with poor network signal reception. The authors carried out the test for a few days. As previously stated, notationally, E [V/m], H [A/m], and SAR are the metrics measured for DL and UL communication devices. The authors in [40] did discuss the average measurement time for each day. They did not consider the global EI and a multicell network scenario.

The authors in [41] investigated the impact of various transmit powers of 4G UE on RF radiation exposures in rural, suburban, urban, and indoor environments, respectively. Unlike in [40], the authors in [41] considered a multicell network scenario comprising a total of 41 evolved nodal base stations (eNodeB) with 235 LTE cells, serving about 7000 UEs. Two of the critical network parameters measured were the power headroom [42] and UL transport time. To this end, the authors derived the time-averaged output power [43] from the measurements from power headroom reports (i.e., UE's output power) and the UL transport time (i.e., UE UL transmission time). However, in [41], the authors only addressed RF radiation emanating from the UL transmission in a 4G network. The authors demonstrated how crucial actual UE and eNodeB power levels were for a proper assessment of RF-EMF exposure.

The SAR characteristics of a planar inverted-F antenna (PIFA) were the subject of a study that was presented in [44]. In this work, the impact of the positioning and antenna's number in the mobile device is explored. Different scenarios were presented, analyzing the positioning of the user equipment when put next to a standard specific anthropomorphic mannequin (SAM) head. The authors noted the device's deterioration and users' average SAR readings being higher than the users with antennas positioned at the mobile devices' upper part.

An optimization framework for the minimization of the radiation exposure from APs and UEs in indoor environments was proposed in [45]. The authors suggested a Genetic Algorithm (GA) optimization technique coupled with site-specific ray-tracing approximation for the prediction and minimization of the Safety Index (SI).

The authors in [46] propose an EMF-aware resource scheduling method that leverages power domain non-orthogonal multiple access (PD-NOMA) and unsupervised machine learning (ML). It controls the maximum number of users allocated to the subcarrier per time by intelligently grouping the users into different K-means clusters, and further formulating a convex optimization problem to minimize their exposure.

In [47], the authors evaluated the exposures from RF-EMF in a wireless network and examined the instantaneous association between the transmit and received powers of a mobile device, with the goal of estimating the exposure from the radiating waves by extrapolating the measured powers.

In [48], a smart-city test-bed, which relies on an Internet of Things (IoT) based platform to assess the radiation exposure metric EI across a geographical area, is proposed. The RF exposure map for a city is captured by the placement of several low-complexity dosimeters (i.e., IoTs) for radiation measurements in different locations. The collection, processing, and spatial representation of the respective measurements were employed in the creation of exposure maps. The authors in [48] considered the network scenarios of GSM, UMTS, and WIFI technologies. However, [48] only considered the radiation exposure due to DL transmission. This does not fully reflect the aim and intention of proposing EI, which considers both UL and DL radiation exposures. Moreover, the authors did not consider 5G mobile networks in their work.

In [49], [50], and [51], strategies for minimizing the global exposure from a radiating electromagnetic field were proposed. In [49], the authors explored strategies such as network deployment topology, environments (i.e., network traffic condition), mobile user behavioral characteristics (i.e., mobility), and user profiles (i.e., services subscribed to). The authors in [50] minimized EMF exposure by taking into consideration QoS and network capacity and explored the impact of user distance from the access point and inter-site distance (ISD) on the RF-EMF exposure. It was surmised that the UL EMF exposure improves as the distance between the UEs and APs decreases. Additionally, the authors in [50] concluded that 5G network APs are in close proximity to the users and that this lowers the transmit power in the UL and, consequently, reduces RF-EMF exposure. To minimize users' SAR exposure while keeping the required QoS, the authors in [51] proposed an offline and online UL strategy in the orthogonal frequency-division multiplexing (OFDM) structures. The offline scheme is a convex optimization problem, solved using the water-filling method, predicated on the notion that all users' long-term channel state information (CSI) is known. The online EM emission reduction technique depends on reducing the energy per bit of each user.

In contrast to previous works, we minimize the global EI of the mobile network in this paper while ensuring that QoS is not compromised. This, we achieve via efficient resource assignment in the network, such as transmit power and resource blocks. Moreover, this paper focuses on UL and DL transmissions to fully capture RF exposure to users.



III. System Model

The system model and pertinent analytical background are presented in this section. Figure 2 provides an illustration of the system model discussed in this study.





A. General Model

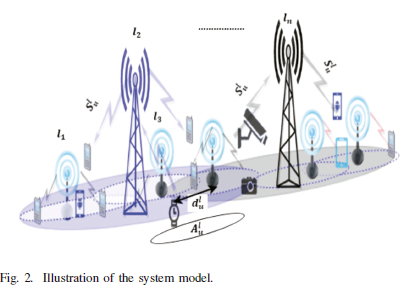

The proposed case investigates the conventional dense deployment of base stations and high user density unique to an urban environment. The set of users Uis uniformly distributed across the geographical area A, having radius r. The area A is densely overlaid by APs typical of an urban scenario. The set of APs is defined as L. We focus our discussion around users that are not mobile and also assume a user u ϵ u is in the presence of a mobile device (i.e., a handheld gadget) to present a simple and realistic deployment. Consider a user u ϵ u, under the coverage of an AP l ϵ l; the distance between u ϵ u and l ϵ l is defined as , and the radiated wave's surface cross-sectional area is denoted by

For a user u ϵ uto communicate with an AP l ϵ l, the UL signaling transmit power on a subcarrier c ϵC is denoted as . Similarly, for the AP l ϵl on a subcarrier c ϵ C, the signaling received power is given as . The set of subcarriers C is such that the aggregate sum of all subcarriers is approximately equal to the system bandwidth B, in the frequency domain. The size, ,of a c ϵ C depends on the radio access technology. For a 4G AP, = 180KHz [52] and = 360KHz, depending on the 5G numerology adapted [53].

The carrier frequency of an AP l ϵ L is denoted by (i.e., in MHz) and the height of l ϵ L is represented as h_l.

B.Channel Model

According to the fundamental RF principles, the near-field principle is impacted by electromagnetism (i.e., induction-based), whereas the far-field principle is predicated on electromagnetic waves (i.e., radiation-based). Consequently, users are exposed to EMF radiation when located in the far-field region¹ (i.e., for distances beyond 2K²/λ).

The radiated wave's surface cross-sectional area, , is given as:

The path loss model in use in this work for the respective users is dependent on the radio access technology and is given [54]-[57] as:

where , and denote the user's distance u ϵ U from an AP l ϵ L in metres (m); the carrier frequency of the signaling link in MHz; and the path loss between an AP l ϵL and a user u ϵ U in decibels (dB).

C.Radiated Power Modelling

Owing to our interest in radiation exposure, we focus our attention on the isotropic antenna due to its unique properties. An isotropic antenna is characteristically a lossless antenna and has a directivity, D,of 1. Consequently, a power-radiating isotropic antenna emits or transmits throughout all directions symmetrically. The antenna gain, G_T, is given by [57]:

The antenna's output power to input power ratio, denoted by ß is expressed as a ratio where ß denotes the antenna efficiency, which is the antenna's output power to input power ratio. D(θ, Φ) is the directivity of the antenna, which is a function of (i) the antenna altitude, θ, and (ii) the antenna angle Φwith respect to the reference plane.

The EIRP [58] expressed in decibels is the resulting gain of the antenna multiplicated by the transmit power given in (3). The EIRP is given by [59]:

where Loss (i.e., body loss) denotes signal attenuation in dB resulting from cable connection between the antenna and transmitter. P_T is the transmitter output power in dBm. Alternatively,

From (4) and (5), it can be concluded that the P_T is critical to EIRP evaluation. The ability to control the power is crucial in cognitive radio management to optimize the needed signal power while reducing radiation and interference. Therefore, transmit power in the downlink scenario, which is also the received power of the UE, is given by [60], [61]:

where P₀(c) is a UE/cell-specific transmit power parameter contained or associated with a subcarrier c ϵC. αdenotes the path loss compensation factor, where 0 < α< 1, with α= 0 as a no-power control mode. Fractional power control is when α > 0. Lastly, α=1 when there is a full path loss compensation mode.

Similarly, the UL transmit power, , is given by [60], [61]:

where denotes the maximum transmit power threshold in the UL mode and is UE-specific. N_u indicates the number of resource blocks allocated to a user u ϵ U. Moreover, δand f(Δ) represent the modulating code scheme's (MCS) offset and closed loop correction function. Owing to how UE's are designed to operate below the maximum transmit power threshold and neglecting the variables δand f(Δ) in (7), an approximation of is given by [60]:

Additionally, combining (1) and (5) yields the spectral power density, in (W/m²), with the closed-form expression given by:

can be expressed in terms of the electric field strengths, , root-mean-square (rms) value and the wave impedance, η₀, as [58]:

where η₀ is of the value 120πΩ. To this end, combining (9) and (10), the electric field strength, can be expressed as:

To quantify the radiation absorbed by a tissue, the SAR metric, is employed as explained in Section I. The SAR, , is directly proportional to the electric field strength's root-mean-square value and can be expressed as [62]:

where ρ_u and σ_u are tissue density in Kg/m³ and the tissue's electrical conductivity (i.e., in S/m) of the user u ϵ U, respectively. From (11) and (12), we can simply express as:

To conclude this subsection, we explore the EI metric along the lines of the SAR. Since EI is the ratio between the measured SAR for the whole body (or for specific body parts, such as the head) taken in intervals of 30 minutes (or 6 minutes for specific body parts) and the maximum SAR threshold [47], the EI is expressed as [47]:

where is the measured or evaluated SAR, and Ω^maxdenotes the maximum SAR threshold.

D. Power Classes

In wireless communication, 'power class' refers to the highest amount of power a transmitting device can emit, which is generally regulated by national or international governing bodies. These classes can differ depending on the region. In 4G and 5G technologies, standard power classes are used to guarantee compatibility between devices made by various manufacturers. Power classes are established by the 3rd Generation Partnership Project (3GPP), a coalition of telecommunications standards organizations. The 3GPP Technical Specifications 36.101 and 38.101 define the four distinct power classes for UE in 4G LTE and 5G, respectively [63], [64]. In this work, the power class 2 is used for UEs in both 4G LTE and 5G networks, with a maximum output power of 24dBm (250mW), as shown in Table I.





Consequently, the actual power consumption of a UE in 4G and 5G networks can differ based on various factors, such as the network setup, user application, frequency spectrum, distance between UE and base station, and the number of UEs connected to the network. Generally, 5G networks function on higher frequency bands than 4G networks, which results in shorter transmission distances but higher power demand. This is due to the necessity of deploying more base stations and incorporating advanced antenna technologies like massive MIMOs for better coverage and capacity. Nevertheless, technological advancements are helping to decrease the power consumption of 5G networks with the utilization of more effective hardware and software to fulfill the requirements of high-speed data transmission and extensive device connectivity.



IV. PROBLEM FORMULATION

In this section, the global radiation exposure problem in a mobile network is examined. The EMF-RF EI minimization problem is formulated as a resource allocation problem, given in (15). Simply, the objective of the resource allocation problem is to efficiently minimize the mobile network's global EI while meeting QoS requirements such as interference threshold, power budget, bandwidth, and data rate threshold.

subject to:

In (15), denotes the binary resource allocation decision variable of the subcarrier c ϵ C in AP l ϵL allocation to user u ϵUat time t.

The constraints in C1 to C5 ensure that solutions obtained are feasible. Constraint C1 ensures that the total bandwidth of an access point is not exceeded. This also ensures that the number of PRBs available on the AP is not exceeded. Moreover, in C1, is the size of the allocated subcarriers and B represents the system bandwidth. Constraint C2describes the limitations associated with the power budget of an AP l ϵ L. C2ensures the power budget of an access point is not exceeded. is the transmit power of the PRB allocated and denotes the maximum power threshold. Constraint C3 enforces that a user u ϵ Uis only associated with an access point l ϵ Land a subcarrier is uniquely allocated to a single user. Constraint C4 is otherwise referred to as the 'interference temperature constraint'. It places a threshold on the interference levels of the network by ensuring that it is not more than the interference limit set. The tolerable interference threshold is denoted as and is the interference experienced by each user and is defined as:

here is the channel gain of a user u allocated subcarrier c. Constraint C5 is the data rate constraint for each UE. This ensures that the QoS is met based on the minimum data SLA, while achieving the objective function in (15). is the minimum required data rate of each user, whereas is the throughput or the allocated data rate for each user and its signal-to-interference-plus-noise ratio (SINR), are defined in (17) and (18) as:

and

where N₀ is the noise spectral density.



V. Proposed Solution

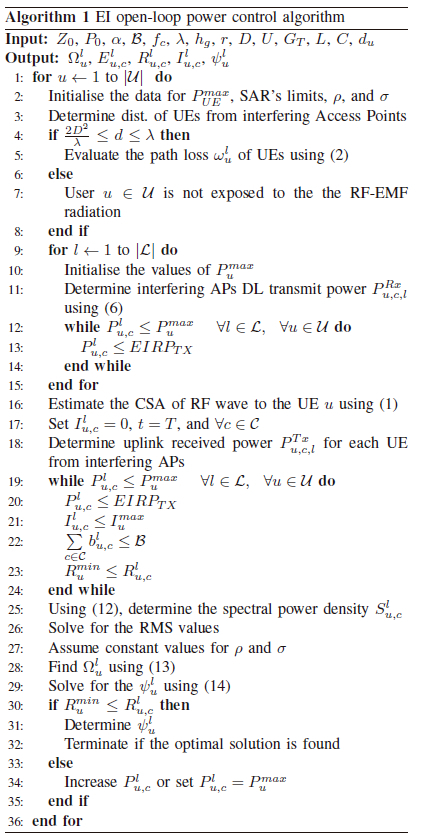

The proposed algorithm solves the optimization problem in (15). To obtain the SINRs that provide the necessary data rates for each user, a workable power solution is needed. EI is minimized by minimizing the transmit power and the transmit time since EI is a function of transmit power and transmit time. Depending on the service type, use case, and network slice to which the users belong, the network offers the minimum data rate that has been agreed upon for each user. Due to restriction C5, the needed data rate must be met even though the goal is to minimize the transmit power and the transmission time of signals to reduce the user's overall Els, as stated in (14). Additionally, the total bandwidth restriction established across all PRBs for every network user must be met and the same as in C1.C2 makes sure that the total power budget is under the power limit. Moreover, the interference threshold constraints and the subcarrier binary allocation are satisfied while optimizing the EI, as described in Alg. 1. Using the power control expressions in (6)-(8) in conjunction with the path loss compensation factor (a), the set constraints are evaluated at every MINLP solution. The MINLP problem is solved until all the constraints are satisfied. Hence, the defined objective function is solved until feasibility and optimality are achieved.

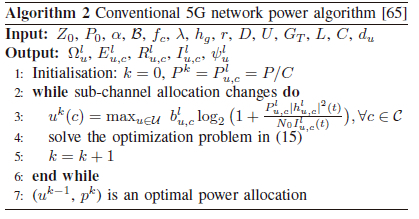

The benchmark algorithm is a conventional 5G network power algorithm adapted from [65], where power is equally allocated across all the PRBs, and the pseudo-code is as presented in Alg. 2. The approach is also a resource allocation MINLP optimization problem but with fixed gain to the time-dependent channels. The objective is to minimize the total transmit power subject to power constraints and data rates. The benchmarked algorithm is expected to satisfy all the requirements while optimally achieving this objective. Consequently, all users are assigned more than the required SINR, or data rate, even at worse channel conditions, which increases network challenges such as interference and the RFEMF exposure of end-users in the networks. Unlike the proposed algorithm, the average throughput of the users might be optimal. However, the network challenges are not (minimized) optimal.



VI. Numerical Results

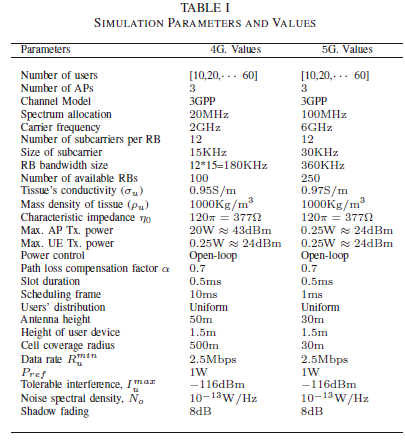

This section presents the performance evaluation of the proposed EI model carried out via intensive simulations in a MATLAB environment. We considered a mobile network environment with 4G and 5G Radio Access Technologies (RATs) as umbrella cells with coverage radius ranging from 50m to 500m. Moreover, network users are randomly distributed across the coverage area and each user's EI and SAR is evaluated separately. Specifically, in this work, the respective APs and UEs radiations contribute to a user's EI and SAR value. The simulation parameters are presented in Table I.









A.Impact of Sum Tolerable Network Interference

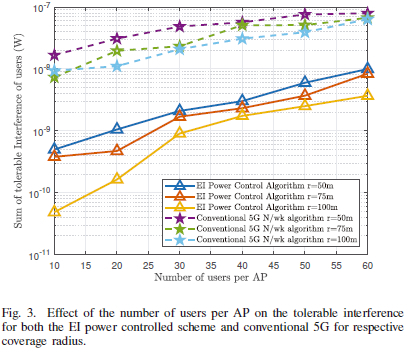

Figure 3 shows the impact of a network's user per AP on the overall network tolerable interference for the proposed EI power-controlled scheme and the conventional 5G network. In Fig. 3, we consider a scenario in which we vary the number of users per AP from 10 to 60 for a network with a coverage radius set at 50m, 75m, and 100m, respectively. We observe that, as the number of users increases, the network's tolerable interference increases for both the EI power controlled scheme and the conventional 5G network scheme. In addition, we observe that the proposed EI demonstrated promising outcomes with a notable decrease in the network's overall tolerated interference, which is lower when compared with the interference limit of - 116dBm (i.e., 2.5 x 10^-15W). This is because an optimized EI further controls the UL and DL transmit power, which in turn lowers the interference levels. Simply put, reducing RF-EMF radiation results in lower levels of interference in the network.

B.Impact of Power Density

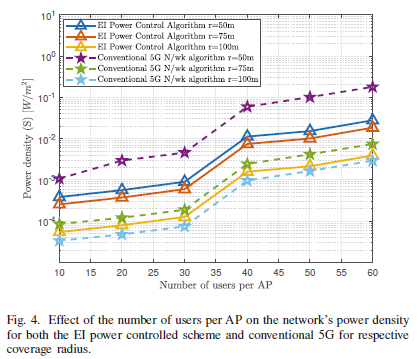

In Fig. 4, we present the impact of the power density on the network. We consider network scenarios in which the number of users per AP is varied from 10 to 60 and the coverage radius of the environment is set at 50m, 75m, and 100m, similar to the scenario in section VI-A. We see an increase in the power density of the network as the number of users per AP increases. Furthermore, we discovered that the proposed EI power control scheme outperformed the conventional scheme across the board. The higher the density of the mobile network environment, the greater the radiation exposure to network users. Therefore, since the EI power control scheme is observed to have a power density which is less than the threshold of 10W/m² recommended by the United States (US) Federal Communications Commission (FCC), the network users will experience less radiation exposure.

C. Impact ofData Rate Threshold on Users

Setting the data rate threshold is a means of ensuring QoS for network users. In Fig. 5, we set the data rate threshold to 2.5Mbps and then examine its impact on the network's average EI. Figure 5 shows that both schemes meet the QoS threshold requirement. However, the conventional scheme provides higher data rates to network users. Additionally, a closer look at Fig. 5 reveals that the proposed scheme meets the QoS requirement (i.e., data rate threshold) with a minimal average EI value. This is owing to its main goal of minimizing EI while also meeting the QoS requirement. Hence, it ensures the minimum transmit power is used to minimize EI while also meeting the QoS constraints.

D.The Effect of the Path Loss Compensation Factor

We explore the impact of the path loss compensation factor on the power density and the average SAR of users of the network in Fig. 6 and Fig. 7.

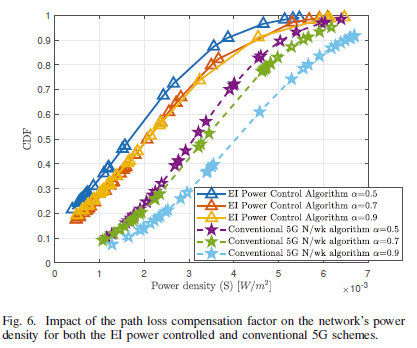

Fig. 6 presents the effect of the path loss compensation factor a on the network's power density. Herein, αis set at 0.5, 0.7, and 0.9, to examine the performance of the network. We observe that the power density increases as αfor both schemes. However, the proposed scheme exhibits a lower power density value for all the set values of α.

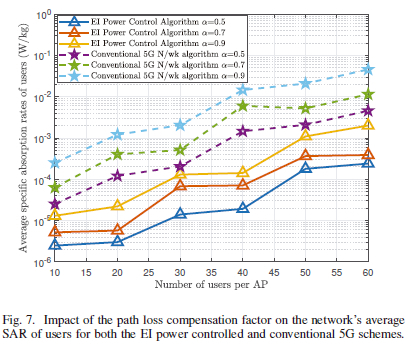

In Fig. 7, the effect of the sum of users per AP on the network's average SAR of users with respect to a is set at the specific values of 0.5, 0.7, and 0.9, respectively. As the number of users per AP increases, we observe that the average SAR of users also increases, though it is still below the threshold of 0.08W/Kg advised by ICNIRP. We also observe that for both schemes and for a defined number of users per AP, Fig. 7 shows that the average SAR increases as αincreases.

E.Impact of the Number of Users

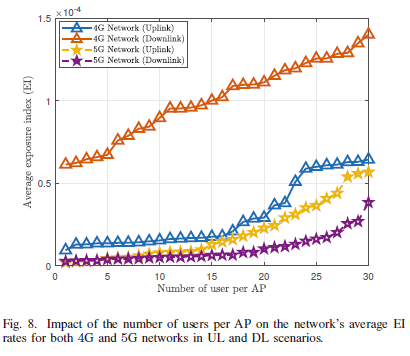

We examine the effect of increasing the number of users per AP on the average EI for UL and DL scenarios. Unlike in Figs. 3 to 7, in Fig. 8, we compare the 4G and 5G networks. In Fig. 8, we observe that the network's average EI increases as the number of users per AP increases for all the scenarios. In accordance with the literature, we see that the network's average EI is greater for DL than for UL scenarios for both 4G and 5G networks. This seeming disparity in average EI for DL and UL scenarios is owing to the higher transmit powers of the APs in the DL transmission. Additionally, we observe that for 5G networks, there is no significant difference between the average EI for UL and DL transmissions for numbers of users per AP less than 10.

























F. Impact of the Exposure Duration

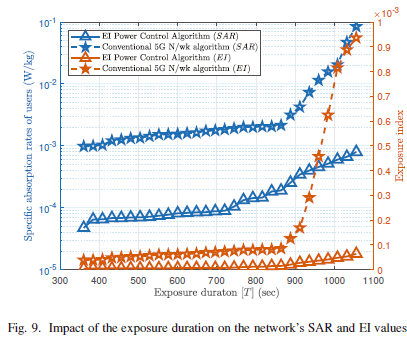

Figure 9 presents the impact of the exposure duration on the specific absorption rates of networks on the one hand and also on the network's EI.





In Fig. 9, we observe a direct proportionality in the exposure duration to the network's SAR and EI values. It is noted that as the exposure duration of users on the UE increases, so does the SAR and EI, and this may be harmful to human health. A careful inspection of Fig. 9 reveals that the proposed EI power control scheme exhibits lesser SAR and EI values in comparison to the conventional 5G scheme.

G. Impact of Electric Field Minimisation on Users' Data Rates

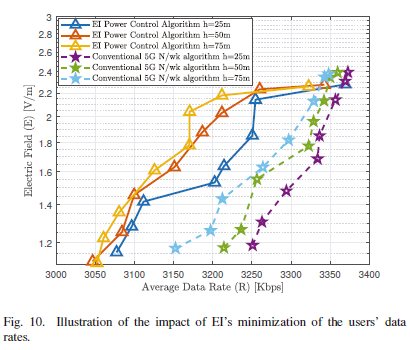

The average data rates of users in the network are significantly related to the electric fields generated in the entire network. Both are a function of the transmit power of both uplink and downlink transmissions. With the need to generate more data for the users in the network, the electric field in the network increases. Figure 10 shows the effect of an increased data rate on the total electric field in the network in a scenario where we vary the antenna height to 25m, 50m, and 75m, respectively. In Fig. 10, we observe that the E-fields increase with the average data rate for both the EI power-controlled scheme and the conventional 5G network scheme. We see that the proposed EI showed promising results with a significant reduction in the network's E-fields. Worthy of note is the effect of the antenna's height on the network's electric field; the higher the height, the lower the E-field. Lastly, the propagated E-fields are below the standard threshold of 27.5V/m advised by IEEE Std. C95.1 [66] and ICNIRP [15] for the used frequency range.





H.Impact of Power Control on EI

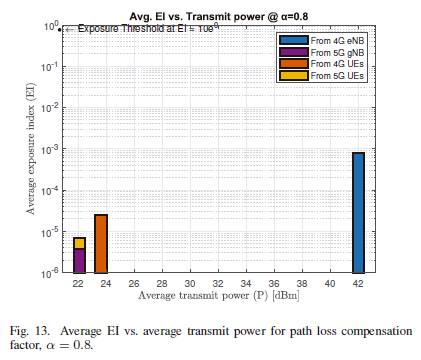

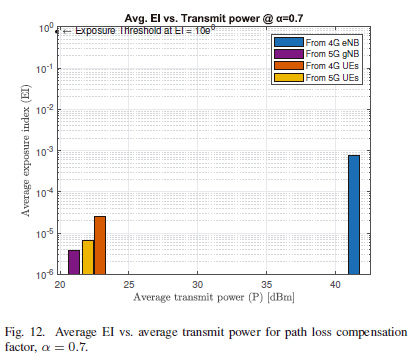

In Figs. 11-14, the average EI caused by the APs and UEs was evaluated for the 4G and 5G networks using their transmit powers and different path loss compensation factors α= 0.5,0.7,0.8, and 1, respectively. The downlink power transmit was below the (0.25W) 24dBm for 5G gNBs and below (20W) 43dBm for 4G eNBs, respectively, while the uplink signaling power limit of the UEs was set at (0.25W) 24dBm. Fig. 14 illustrates how the path loss compensation component affects the EI with the full power control compensation of α=1 having the highest average EI compared to fractional power control schemes (where both the cell-edge and cell-center users are accounted for) in Figs. 11-13. It is also evident from Figs. 11-14 that the exposures from the APs (gNBs) are, with the exception of the eNBs, lower than that of the UEs (despite transmitting with more power). This is because these APs are at a farther distance from the users compared to the UEs. Thus, power densities reduce with distance, as supported by the path loss and inverse square law theories.

















In addition, it is evident from the findings that 5G networks' exposure doses are lower than those of 4G networks. Among the causes of this include the 5G network's usage of a higher frequency band, which limits the coverage area and, consequently, the radiation exposure. Also worthy of note is that the threshold of the EI is derived to be 10⁰ = 1 [62], based on the standard ERLs. All the 4G and the 5G networks' EIs are observed to be less than this, as depicted in Figs. 11-14 for both whole-body and the local RF-EMF exposures.

I.Impact of SINR on radiation exposure

SINR is a metric that quantifies the quality of a wireless communication link, which indicates the ratio of the desired signal power to the combined interference and noise power. The SINR value is affected by network parameters, such as signal strength, interference, fading, and noise in the communication channel. However, SAR depends on the power emitted by the wireless, its proximity, and its exposure to the body. In this work, we further explore the impact of the SINR on the network's SAR in Figs. 15, 16, and 17.

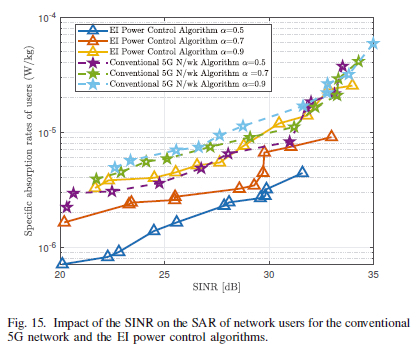

In Fig. 15, we present the impact of the SINR on the SAR of network users via the use of conventional 5G networks and the EI power control algorithms. In Fig. 15, the SINR threshold is varied from a 20dB to 35dB range, while setting the power control factor, α, for both algorithms at 0.5, 0.7, and 0.9, respectively. We observed that as the SINR threshold increases, the SAR of users also increases. Additionally, we see that the SARs values are much lower in the proposed EI power control algorithm, which indicates controlled and optimized power when compared with our benchmarked algorithm, the conventional 5G network. Moreover, higher SINR values connote better signal quality and reduced interference, which translates to higher data rates and fewer transmission errors or bit error rates (BER) if using the modulation technique.

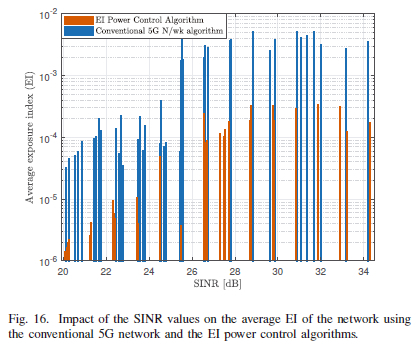

Similar to Fig. 15, Fig. 16 shows the impact of the SINR values on the average EI of the network. In Fig. 16, we vary the SINR threshold range from 20dB to 35dB. We observe that the proposed EI algorithm showed promising EI values which are way lower when compared with the benchmarked algorithm while ensuring the SINR QoS is satisfied.

J. Impact of SINR on power density and transmit power

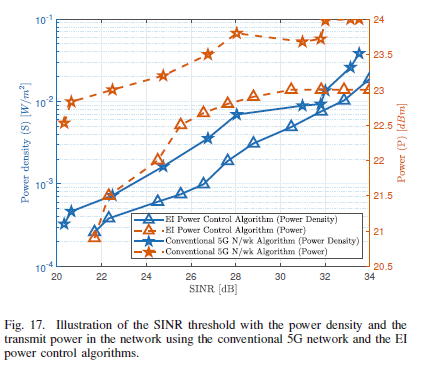

Figure 17 identifies the trends and the trade-offs between power, power density, and SINR in wireless networks. In Fig. 17, we compare the SINR threshold with the power density and the transmit power in the network. The result shows that the power and the power per unit area values are less in the EI power control algorithm. The power densities of both algorithms provide insight into how power is distributed spatially, which is important for understanding the SAR and EI in the network environment. Additionally, we observe that beyond the 23dBm power level, additional increases in power may not significantly improve the SINR. This is due to factors such as propagation limitations, interference, or noise.

In Figs. 15-17, we observed that the proposed EI power control algorithm outperforms the benchmarked scheme owing to the network interference being minimized in the proposed EI scheme, as confirmed by the result in Fig. 3. Likewise, the signals from our proposed scheme are higher, as shown in data rates of users in Figs. 5 and 10. The EI power control algorithm has optimized the network parameters using power control and interference management to improve SINR and overall network performance while adhering to SAR and EI safety regulations.



VII. Conclusion

In this paper, we have investigated the impact of RF-EMF exposure resulting from wireless networks. We have developed a cutting-edge simulation technique that evaluates the uplink and downlink electromagnetic-field radiation exposures on users of both 5G and 4G networks. With the introduction of a power control model to the networks, the EI was evaluated using the power density, electric field, magnetic field, and SAR, as well as the tissue's conductivity and density. We further developed a power control algorithm that minimizes the exposure in the networks. Using MINLP, we minimized the UL and DL RF-EMF exposures emitted to the users within the network by considering the data rate, power, and interference limits as the QoS constraints.

The proposed scheme was simulated using MATLAB, and the results of our numerical analysis were compared to the other simulated algorithms based on the standards set by regulatory bodies such as the FCC, IEEE, and ICNIRP, to determine the level of compliance and the exposure impact. The evaluation confirmed that the exposures are far lower than the recommended limits and that the exposures are minimized without compromising the users' QoS. Moreover, via the simulation, we compared the EI emitted from the 5G networks and the 4G networks. The results compared the radiation from the UL and DL transmissions in both the 5G and the 4G mobile networks. In a multi-domain environment, that is, an EMF environment with multiple mobile network operators, the total number of UEs and BS is large. To replicate this with a single mobile network, we have increased the number of BS and UEs; hence, we have a dense network. Moreover, in future work, we shall address a multi-domain environment in-depth. We also plan to study and compare the RF-EMF exposure impacts of the C-band frequency range with the millimeter-wave frequency band.
