African Journal of Laboratory Medicine
On-line version ISSN 2225-2010
Print version ISSN 2225-2002
Afr. J. Lab. Med. vol.10 n.1 Addis Ababa 2021
http://dx.doi.org/10.4102/ajlm.v10i1.1124
BRIEF REPORT
Performance of TaqMan probes for the detection of sexually transmitted infections in South African women
Nireshni MitchevI; Ravesh SinghI, II; Nigel GarrettIII, IV; Veron RamsuranV; Abraham J. NiehausI, II; Koleka P. MlisanaI, III, VI
IDepartment of Medical Microbiology, School of Laboratory Medicine and Medical Sciences, University of KwaZulu-Natal, Durban, South Africa
IIDepartment of Medical Microbiology, National Health Laboratory Service, Durban, South Africa
IIICentre for the AIDS Programme of Research in South Africa, Durban, South Africa
IVDiscipline of Public Health Medicine, School of Nursing and Public Health, University of KwaZulu-Natal, Durban, South Africa
VKwaZulu-Natal Research Innovation and Sequencing Platform, School of Laboratory Medicine and Medical Sciences, University of KwaZulu-Natal, Durban, South Africa
VIDepartment of Academic Affairs, Research and Quality Assurance, National Health Laboratory Service, Durban, South Africa
ABSTRACT
Neisseria gonorrhoeae, Chlamydia trachomatis, Trichomonas vaginalis and Mycoplasma genitalium are the four main aetiologies of sexually transmitted infections responsible for vaginal discharge syndrome (VDS). Commercially available multiplex polymerase chain reaction (PCR) assays are expensive and generally not customisable. We evaluated a highly customisable singleplex PCR approach by testing it in parallel with the Anyplex™ II STI-7 detection assay in a cohort of South African women that presented with VDS between May 2016 and January 2017. Our multiple singleplex PCR strategy proved to be a simple, accurate, rapid, affordable and scalable option for diagnosing VDS.
Keywords: sexually transmitted infections; vaginal discharge syndrome; molecular diagnostics; validation; TaqMan.
Introduction
The World Health Organization estimates that approximately one million curable sexually transmitted infections (STIs) occur globally each day.1Neisseria gonorrhoeae, Chlamydia trachomatis and Trichomonas vaginalis are the three most common pathogens causing STIs worldwide, with co-infection also common.1,2 Globally, as of 2016, there were approximately 86 million cases of gonorrhoea, 127 million cases of chlamydia and 156 million cases of trichomoniasis among 15-49 year-olds, with estimated prevalence rates of 0.9%, 3.8% and 5.3% in women specifically.1,3 Such estimates are important for the effective prevention and control of STIs but are generally lacking for most low- and middle-income countries.4 Torrone et al. recently published a meta-analysis of data from African countries that highlights this point.4 Prevalence figures varied widely between studies and ranged from 1.4% to 15.2% for N. gonorrhoeae, 1.2% to 20.6% for C. trachomatis and 6.6% to 29.7% for T. vaginalis.4 The prevalence of most STIs is generally greater in certain high-risk populations such as those with a high prevalence of HIV co-infection and women aged 15-24 years.4
Sexually transmitted infections and their complications are one of the top five reasons why females in low- and middle-income countries attend healthcare facilities.1,2 Although the majority of STIs are asymptomatic, asymptomatic STIs can increase the probability of transmission of HIV and other STIs, as well as have adverse effects on reproduction potential and maternal and newborn health.1,2,5,6
Syndromic management of STIs is widely practised and was introduced in South Africa in 1995.7,8 Unfortunately, due to its inability to effectively identify and treat a large number of individuals with asymptomatic infections, syndromic management has failed to decrease the prevalence of gonorrhoea and chlamydia in South Africa.7,8
Diagnosing the aetiology of most STIs using culture methods is notoriously difficult and can take several days to complete. Multiplex polymerase chain reaction (PCR) assays are currently the preferred diagnostic method used for identifying and subsequently managing both symptomatic and asymptomatic STIs in many well-resourced countries.9 Since PCR assays are not dependent on organism viability, they are often up to 20% - 30% more sensitive than conventional phenotypic methods and they can simultaneously detect multiple pathogens and also serve as point-of-care tests.9,10,11,12,13 Polymerase chain reaction also performs well on noninvasively obtained specimens like urine and self-collected vaginal swabs.10
Our study aimed to evaluate the suitability of a highly customisable singleplex real-time PCR approach using commercially available TaqMan® probes (Thermo Fisher Scientific, Waltham, Massachusetts, United States) for the identification of N. gonorrhoeae, C. trachomatis, T. vaginalis and Myocoplasma genitalium in vaginal samples from our local population. The Anyplex™ II STI-7 detection assay (Seegene, Seoul, South Korea) was used as the comparator method. This widely used multiplex real-time PCR assay displays excellent sensitivity and specificity characteristics compared with other diagnostic tools.10
Methods
Ethical considerations
Women attending the Prince Cyril Zulu Communicable Disease Centre (Durban, South Africa) for STI care were approached and, if willing to participate, provided written informed consent for the study. Study data were collected, anonymised and managed using password-protected REDCap electronic data capture tools (Vanderbilt University, Nashville, Tennessee, United States), and stored on a secure server. This study was approved by the Biomedical Research Ethics Committee of the University of KwaZulu-Natal (study approval number: BE534/16).
Samples
As part of the Centre for the AIDS Programme of Research in South Africa 083 cohort study between May 2016 and January 2017, which was previously described in detail, women aged 18-40 presenting for STI care at a clinic in Durban were assessed for enrolment and participation.7,14 HIV-positive women, pregnant women and those engaging in sex work were excluded due to predetermined eligibility criteria.15 Participants consented to vaginal swab specimen collection for molecular testing. ESwab™ collection and transport kits (Copan Diagnostics, Brescia, Italy) were used as per the manufacturer's instructions.
DNA extraction and polymerase chain reaction
Collection swabs were vortexed for 30 s while inside their transport tubes, whereafter 500 µL of the suspension was added to a 1.5 mL Eppendorf tube. This was followed by centrifugation and resuspension of the sediment in 200 µL distilled water. After heating and sonication steps, 5 µL of the resultant sample was added to 15 µL pre-aliquoted master mix. For the TaqMan® probe assays, master mixes were prepared separately for each single target reaction in a 96-well plate. The Anyplex™ II STI-7 detection assay was used according to the manufacturer's specifications and was performed using a CFX96 real-time PCR system (BioRad, Hercules, California, United States).10 TaqMan® probes were used in a singleplex format on the ABI® 7500 real-time PCR instrument from Applied Biosystems (Thermo Fisher Scientific, Waltham, Massachusetts, United States).
Data management and analysis
Anyplex™ II STI-7 detection assay results were analysed and interpreted with Seegene Viewer software (Seegene, Seoul, South Korea). Contingency 2 × 2 tables were used to determine the sensitivity, specificity, positive predictive value and negative predictive value for each of the TaqMan® probes with Anyplex™ II STI-7 detection assay as the gold standard.10,16,17
Results
A total of 267 women were screened for STIs at an urban clinic in Durban, South Africa. Vaginal discharge (n = 106; 39.7%) was the most common symptom reported.15 Vaginal swabs were available for molecular investigation from 250 (93.6%) women. Two molecular assays were used in parallel to detect the presence of four sexually transmitted microorganisms implicated in vaginal discharge syndrome.
The yield obtained from 250 samples by each of the two methods ranged between 3.6% and 13.6% (Table 1). At least one of N. gonorrhoeae, C. trachomatis, T. vaginalis or M. genitalium was identified in 22.8% (57/250) of the study population. C. trachomatis was the most common organism found in co-infections and was present in 42% (5/12) of the N. gonorrhoeae, 25% (3/12) of the M. genitalium and 11% (1/9) of the T. vaginalis infections.

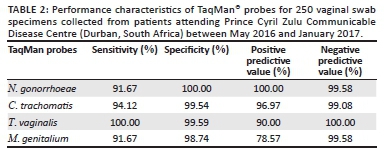

TaqMan® probe sensitivity ranged from 91.67% to 100%, and specificity ranged from 98.74% to 100.00% (Table 2). Negative predictive values ranged from 99.08% to 100.00% and positive predictive values ranged from 90.00% to 100.00%, except for M. genitalium (78.57%).
Final results were available after 130 min and 180 min with the TaqMan® probes and Anyplex™ II STI-7 detection assay, respectively. This includes 45 min for DNA extraction and 15 min for results analysis.
Discussion
The prevalence of any of the main curable STIs, including syphilis and those caused by N. gonorrhoeae, C. trachomatis and T. vaginalis, in women in KwaZulu-Natal, South Africa was previously reported to be as high as 13%.18 In our study, we observed the overall prevalence of STIs to be 22.8%. Our prevalence data is not a true representation of the general population, because we recruited participants from a sexually active cohort of women that presented with symptoms to an STI clinic. The Xpert® CT/NG assay (Cepheid, Sunnyvale, California, United States) was previously used to investigate this cohort of samples.7 For the present study, we employed the Anyplex™ II STI-7 detection assay as the comparator, because the Xpert® CT/NG assay can identify C. trachomatis and N. gonorrhoeae, but not T. vaginalis and M. genitalium.
Sensitivity, specificity, positive predictive value and negative predictive value characteristics of the TaqMan® probes for the four investigated organisms compared well to the chosen reference method. The only exception was the low positive predictive value observed for M. genitalium. This deviation may be due to the small sample size and requires further investigation.
Except for certain antibiotic-resistant organisms, the STIs detected in our study can usually be treated with a course of antibiotics; however, if they remain undiagnosed and subsequently untreated, a range of serious health issues may follow. Complications include elevated HIV transmission rates, infertility as well as life-threatening ectopic pregnancy and stillbirths.19 A rapid, accurate and affordable STI diagnostic tool is therefore essential to identify and treat affected individuals.13
Molecular testing methods are advantageous over phenotypic testing methods due to the rapid availability of results. Polymerase chain reaction methodologies can also detect various predefined targets at the same time, including drug-resistance determinants. Singleplex PCR methods offer some important advantages over multiplex methods, principally in terms of ease of optimisation, customisability and target quantification. New gene targets of interest can be added in a flexible way without the requirement of a full revalidation process of the existing targets. Our multiple singleplex PCR system can easily be adapted to diagnose various other clinical syndromes caused by bacterial, viral, fungal and parasitic microorganisms, including meningitis, blood stream infections, respiratory infections, diarrhoea, and urinary tract infections. Singleplex PCR systems allow target quantification, which has potential diagnostic, prognostic and clinical monitoring functions.
Turnaround times with our multiple singleplex PCR were 50 min shorter than with the multiplex method. The clinical impact of this time difference, when non-immediately life-threatening infections are concerned, is probably insignificant.
Multiplex PCR methodologies are generally significantly more cost-effective than singleplex PCRs. However, this does not hold true when small numbers of molecular targets are considered.20 Costing of the four targets used in our testing system indicates a considerable cost saving of $15.27 (United States dollars [USD]) per test, over the comparator method that is priced at $24.67 USD per test. Affordability can be increased even further by using a 384-well reaction plate, making it an attractive option for high-throughput environments. With our system, we can easily adopt a workflow that is suitable for both research and clinical laboratories.
Limitations
Limitations of this study include the relatively small sample size and the low positivity rate obtained by both methodologies. Multiple other microorganisms and dual infections may also have been responsible for vaginal discharge syndrome in some women, but were not considered in this investigation.
Conclusion
The performance of four TaqMan® probes (Thermo Scientific) was assessed by comparison with the Anyplex II STI-7 detection assay. Our multiple singleplex real-time TaqMan® PCR approach proved to be highly sensitive and specific for the detection of C. trachomatis, N. gonorrhoeae, T. vaginalis and M. genitalium. This approach offers an accurate, cost-effective and scalable option for identifying these pathogens in our patient population.
Acknowledgements
The authors would like to acknowledge the AIDS Programme of Research in South Africa 083 STI study participants and staff at the National Health Laboratory Services (Inkosi Albert Luthuli Central Hospital, Durban, South Africa) and Centre for the AIDS Programme of Research in South Africa.
Competing interests
The authors declare that they have no financial or personal relationships that may have inappropriately influenced them in writing this article.
Authors' contributions
N.M., R.S. and K.P.M. conceptualised the study. K.P.M. was responsible for the overall supervision of the project and the acquisition of funding. N.M. and N.G. were responsible for project administration. N.M., R.S. and V.R. decided on the methodology and performed the laboratory investigations. N.M. curated all the data and the data analysis was done together with A.J.N. All authors participated in the writing of the manuscript.
Sources of support
This project was funded through a grant by the Department of Science and Technology and the National Research Foundation Centre of Excellence in HIV Prevention as well as a grant from the United States - South African Program for Collaborative Biomedical Research, through the South African Medical Research Council and the United States National Institutes of Health (grant number: AI116759).
Data availability
The authors confirm that the data supporting the findings of this study are available within the article or its supplementary materials.
Disclaimer
The views and opinions expressed in this article are those of the authors and do not necessarily reflect the official policy or position of any affiliated agency of the authors.
References
1. World Health Organization. Report on global sexually transmitted infection surveillance 2018 [homepage on the Internet]. 2019 [cited 2019 Jul 13]. Available from: https://www.who.int/reproductivehealth/publications/stis-surveillance-2018/en/ [ Links ]
2. Tayoun ANA, Burchard PR, Caliendo AM, Scherer A, Tsongalis GJ. A multiplex PCR assay for the simultaneous detection of Chlamydia trachomatis, Neisseria gonorrhoeae, and Trichomonas vaginalis. Exp Mol Pathol. 2015;98(2):214-218. https://doi.org/10.1016/j.yexmp.2015.01.011 [ Links ]
3. Rowley J, Van der Hoorn S, Korenromp E, et al. Chlamydia, gonorrhoea, trichomoniasis and syphilis: Global prevalence and incidence estimates, 2016. Bull World Health Organ. 2019;97:548-562. [ Links ]
4. Torrone EA, et al. Prevalence of sexually transmitted infections and bacterial vaginosis among women in sub-Saharan Africa: An individual participant data meta-analysis of 18 HIV prevention studies. PLOS Med. 2018;15(6):e1002511. https://doi.org/10.1371/journal.pmed.1002511 [ Links ]
5. Kaida A, Dietrich JJ, Laher F, et al. A high burden of asymptomatic genital tract infections undermines the syndromic management approach among adolescents and young adults in South Africa: Implications for HIV prevention efforts. BMC Infect Dis. 2018;18:499. https://doi.org/10.1186/s12879-018-3380-6 [ Links ]
6. Workowski KA, Bolan GA, Centers for Disease Control and Prevention. Sexually transmitted diseases treatment guidelines, 2015. MMWR Recomm Rep. 2015;64(RR-03):1-137. [ Links ]
7. Garrett NJ, Osman F, Maharaj B, et al. Beyond syndromic management: Opportunities for diagnosis-based treatment of sexually transmitted infections in low- and middle-income countries. PLoS One. 2018;13(4):e0196209. https://doi.org/10.1371/journal.pone.0196209 [ Links ]
8. Garrett NJ, McGrath N, Mindel A. Advancing STI care in low/middle-income countries: Has STI syndromic management reached its use-by date? Sex Transm Infect. 2016;93(1):4-5. https://doi.org/10.1136/sextrans-2016-052581 [ Links ]
9. Lee SJ, Park DC, Lee DS, Choe HS, Cho YH. Evaluation of Seeplex STD6 ACE detection kit for the diagnosis of six bacterial sexually transmitted infections. J Infect Chemother. 2012;18(4):494-500. https://doi.org/10.1007/s10156-011-0362-7 [ Links ]
10. Choe HS, Lee DS, Lee SJ, et al. Performance of Anyplex II multiplex real-time PCR for the diagnosis of seven sexually transmitted infections: Comparison with currently available methods. Int J Infect Dis. 2013;17(12):e1134-e1140. https://doi.org/10.1016/j.ijid.2013.07.011 [ Links ]
11. Trembizki E, Costa AMG, Tabrizi SN, Whiley DM, Twin J. Opportunities and pitfalls of molecular testing for detecting sexually transmitted pathogens. Pathology. 2015;47(3):219-226. https://doi.org/10.1097/PAT.0000000000000239 [ Links ]
12. Papp JR, Schachter J, Gaydos CA, Van Der Pol B. Recommendations for the laboratory-based detection of Chlamydia trachomatis and Neisseria gonorrhoeae - 2014. MMWR Recomm Rep. 2014;63(RR-02):1-19. [ Links ]
13. Unemo M. Current and future antimicrobial treatment of gonorrhoea - The rapidly evolving Neisseria gonorrhoeae continues to challenge. BMC Infect Dis. 2015;15:364. https://doi.org/10.1186/s12879-015-1029-2 [ Links ]
14. Garrett N, Mitchev N, Osman F, et al. Diagnostic accuracy of the Xpert CT/NG and OSOM trichomonas rapid assays for point-of-care STI testing among young women in South Africa: A cross-sectional study. BMJ Open. 2019;9(2):e026888. https://doi.org/10.1136/bmjopen-2018-026888 [ Links ]
15. Garrett N, Maharaj B, Osman F, et al. P4.115 High uptake of effective expedited partner therapy among young women with STIs and their partners in South Africa. Sex Transm Infect. 2017;93(Suppl 2):A233. https://doi.org/10.1136/sextrans-2017-053264.610 [ Links ]
16. Naaktgeboren CA, Bertens LCM, van Smeden M, et al. Value of composite reference standards in diagnostic research. BMJ. 2013;347:f5605. https://doi.org/10.1136/bmj.f5605 [ Links ]
17. Alonzo TA, Pepe MS. Using a combination of reference tests to assess the accuracy of a new diagnostic test. Stat Med. 1999;18(22):2987-3003. https://doi.org/10.1002/(SICI)1097-0258(19991130)18:22%3C2987::AID-SIM205%3E3.0.CO;2-B [ Links ]
18. Naidoo S, Wand H, Abbai NS, Ramjee G. High prevalence and incidence of sexually transmitted infections among women living in Kwazulu-Natal, South Africa. AIDS Res Ther. 2014;11:1. https://doi.org/10.1186/1742-6405-11-31 [ Links ]
19. Centers for Disease Control and Prevention. Sexually transmitted disease surveillance report [homepage on the Internet]. 2016 [cited 2019 May 28]. Available from: https://www.cdc.gov/std/stats16/CDC_2016_STDS_Report-for508WebSep21_2017_1644.pdf [ Links ]
20. Deshpande A, White PS. Multiplexed nucleic acid-based assays for molecular diagnostics of human disease. Expert Rev Mol Diagn. 2012;12(6):645-659. https://doi.org/10.1586/erm.12.60 [ Links ]
Correspondence:
Abraham Niehaus
abrahamniehaus@gmail.com
Received: 07 Nov. 2019
Accepted: 08 Jan. 2021
Published: 31 Mar. 2021
